Engine Mounts: Components

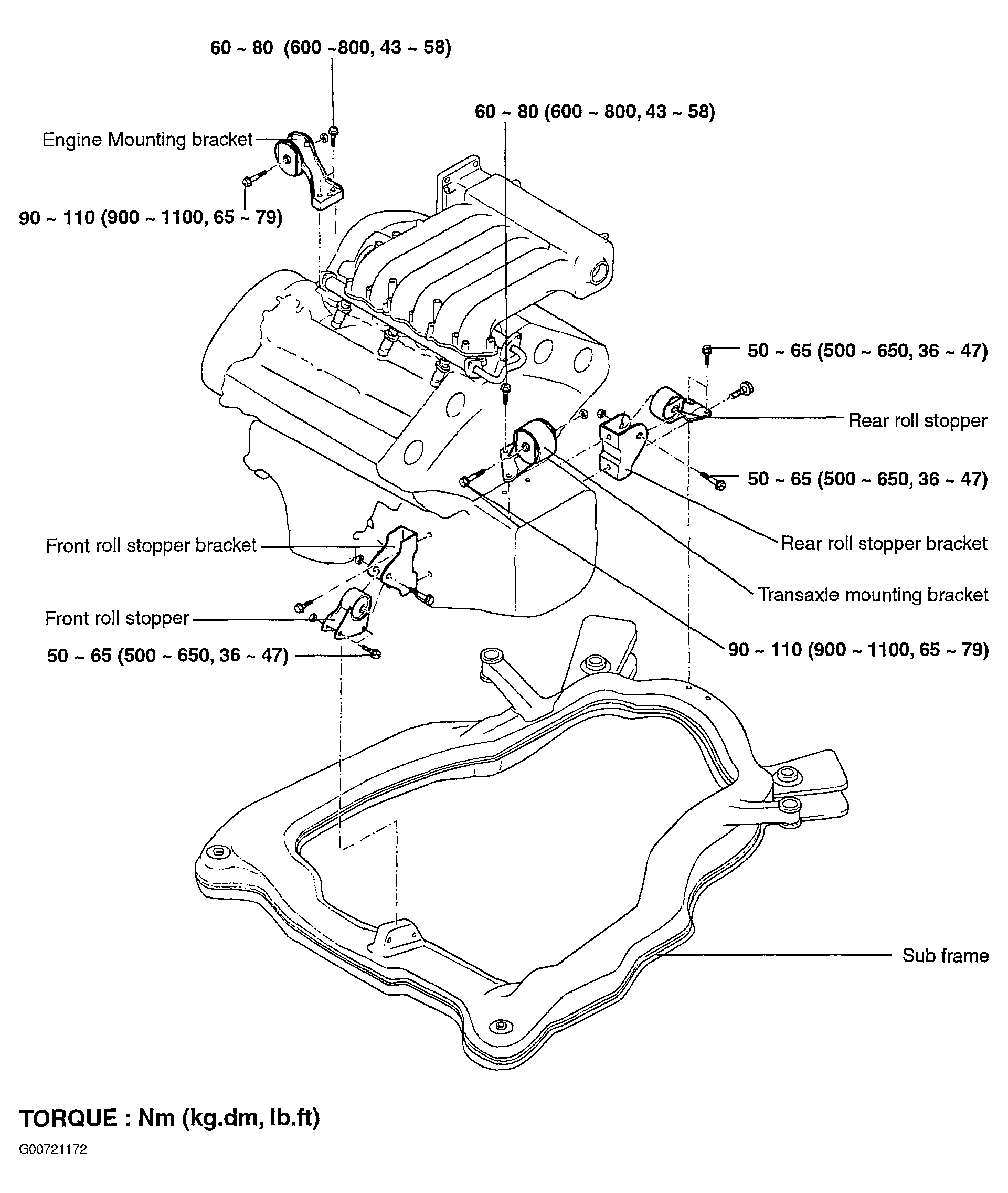

Fig 1: Identifying Engine Mount Components
G00721172Courtesy of HYUNDAI MOTOR CO.
