Engine Mounting

  1. Remove the engine mount bracket bolts and nut.

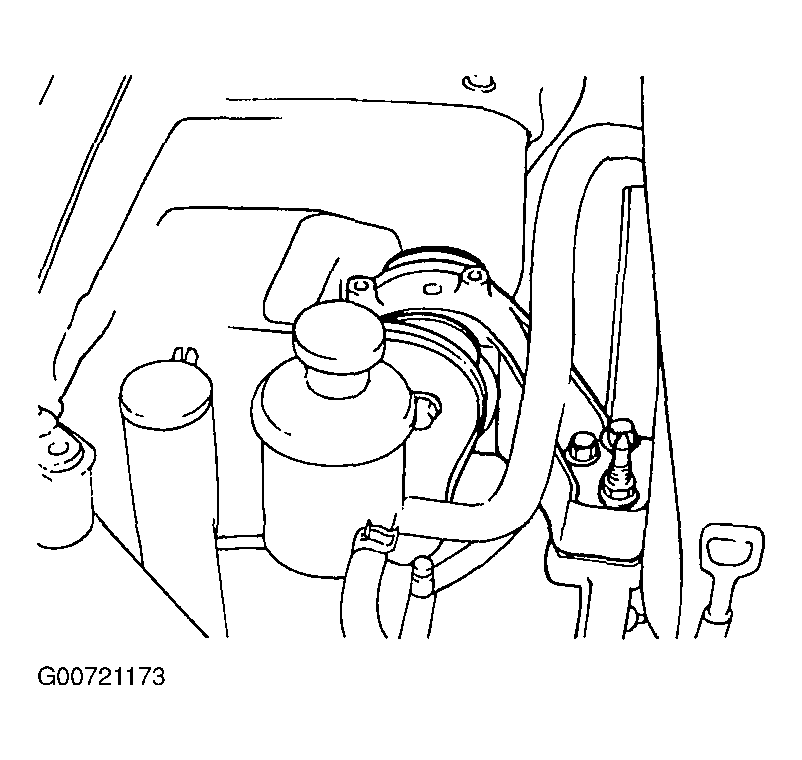

    Fig 1: Removing Engine Mount Bracket Bolt & Nut
    G00721173Courtesy of HYUNDAI MOTOR CO.
  2. Remove the engine mount bracket from the engine.
