Crank Shaft: Components

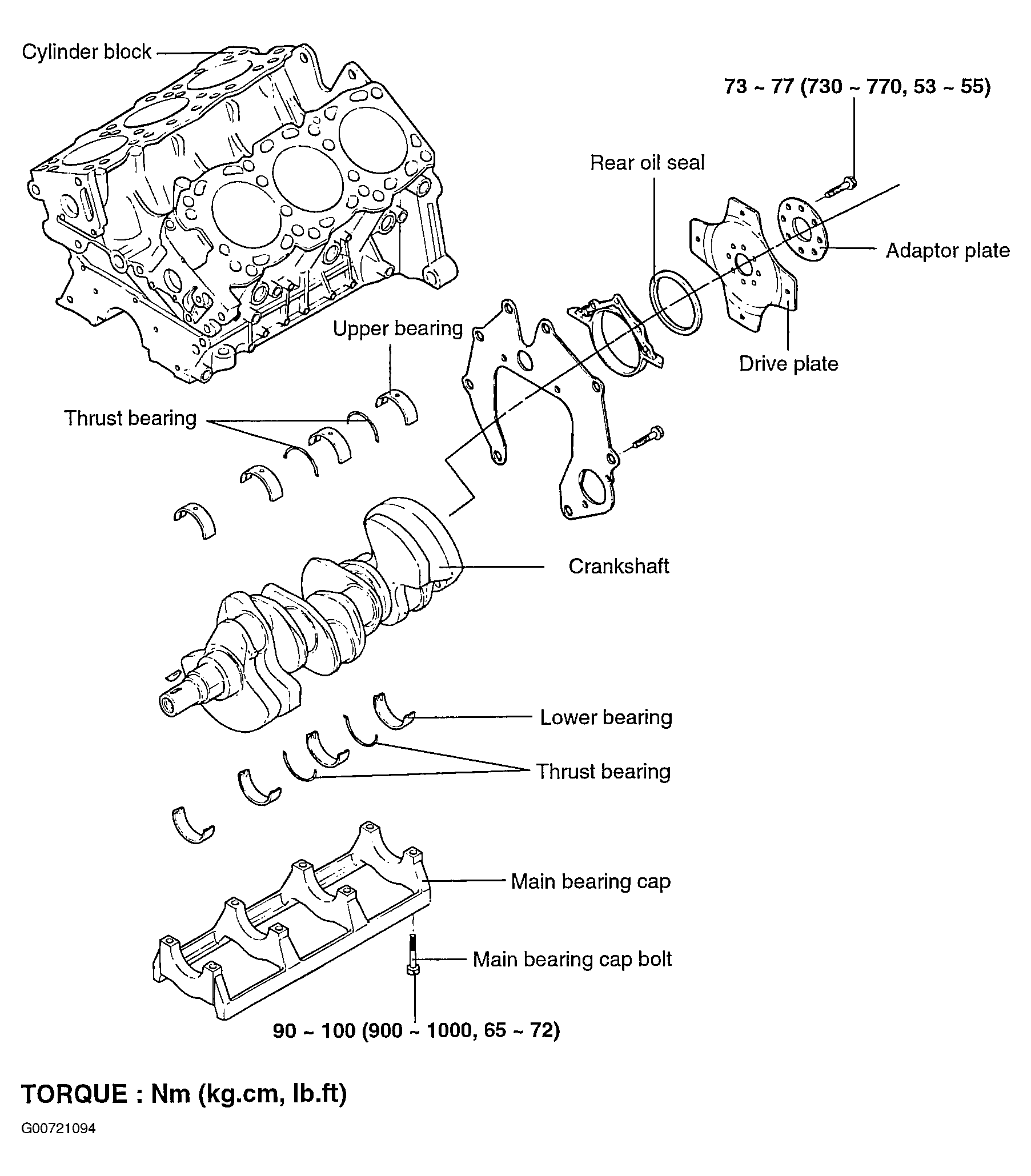

Fig 1: Identifying Crankshaft Components
G00721094Courtesy of HYUNDAI MOTOR CO.
