Timing Belt: Installation

The method of installing timing belt and auto tensioner.

1. Install idler pulley to engine support lower bracket.

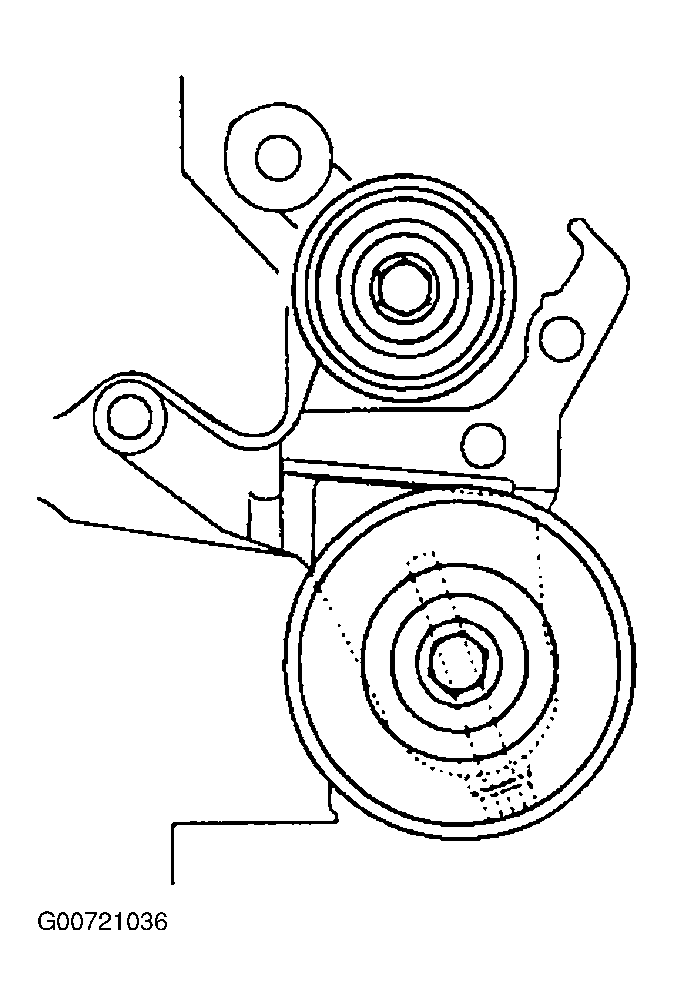

   Fig 1: Installing Idler Pulley To Engine Support Lower Bracket

   Courtesy of HYUNDAI MOTOR CO.
2. Install tensioner arm, shaft and plane washer to cylinder block.

   Tightening torque:  35 ~ 55 Nm (350 ~ 550 kg.cm)

   Fig 2: Installing Tensioner Arm Shaft & Plane Washers

   Courtesy of HYUNDAI MOTOR CO.
3. Install crankshaft sprocket and align the timing mark.

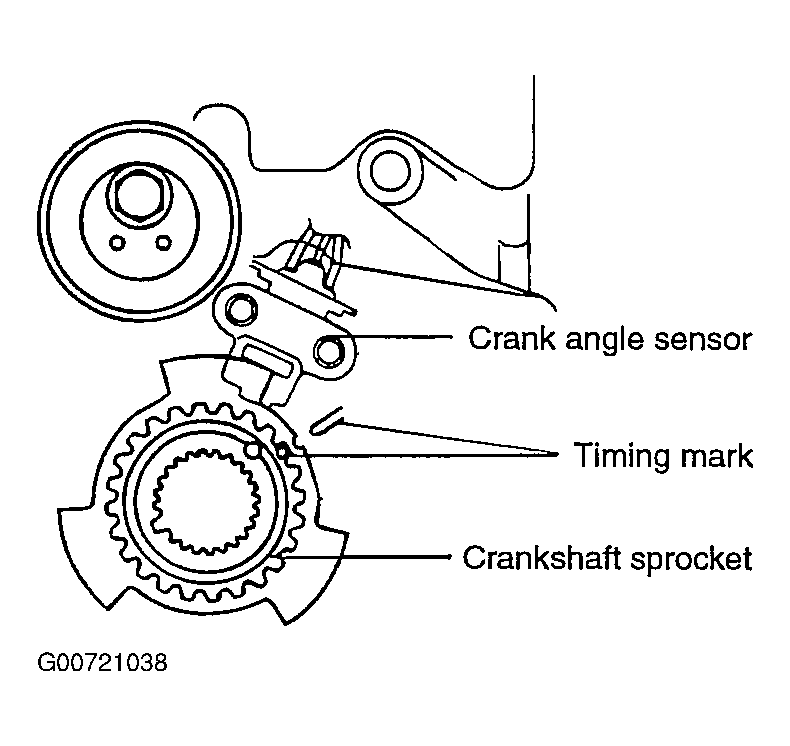

   Fig 3: Identifying Crankshaft Sprocket Timing Marks

   Courtesy of HYUNDAI MOTOR CO.
   CAUTION: Be careful not to bend crankshaft sensing blade.

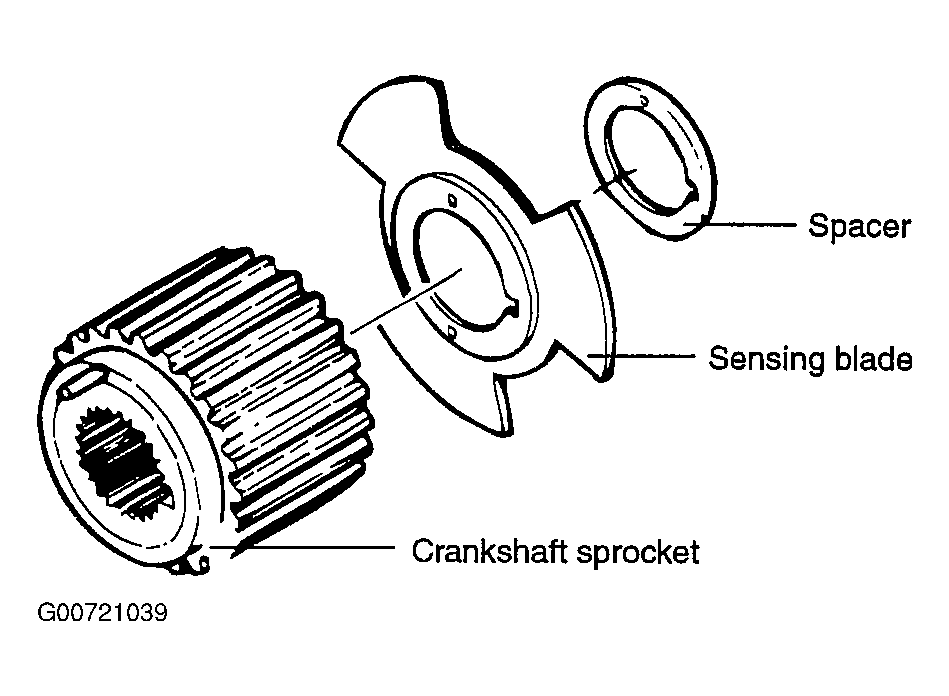

   Fig 4: Installing Crankshaft Sprocket, Sensing Blade & Spacer

   Courtesy of HYUNDAI MOTOR CO.
4. Install camshaft sprocket and adjust initial installation state as illustration.

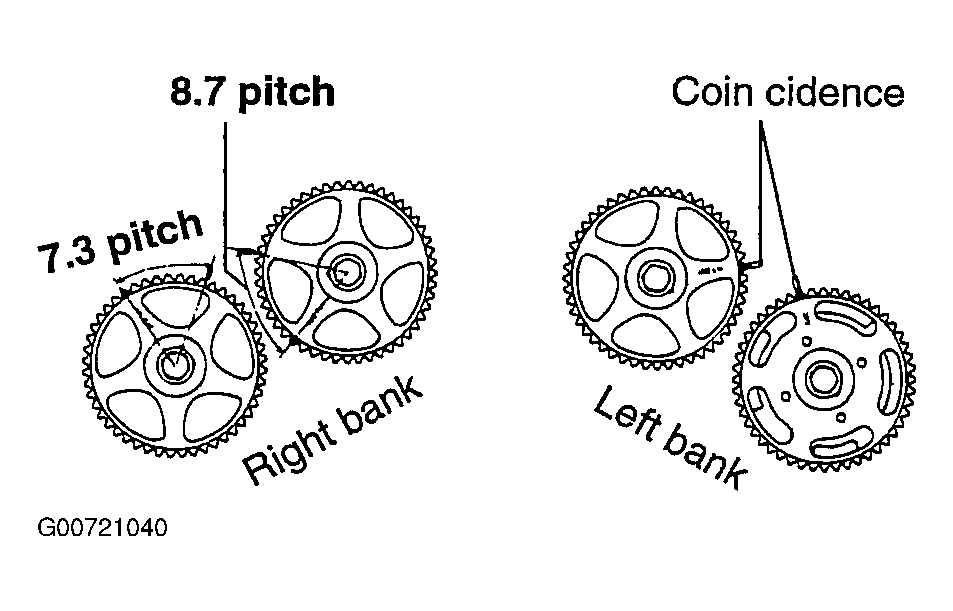

   Fig 5: Identifying Initial Camshaft Installation Positions

   Courtesy of HYUNDAI MOTOR CO.
5. Install auto tensioner to oil pump case.
   NOTE: If the auto tensioner rod is in its fully extended position, reset it as follows.

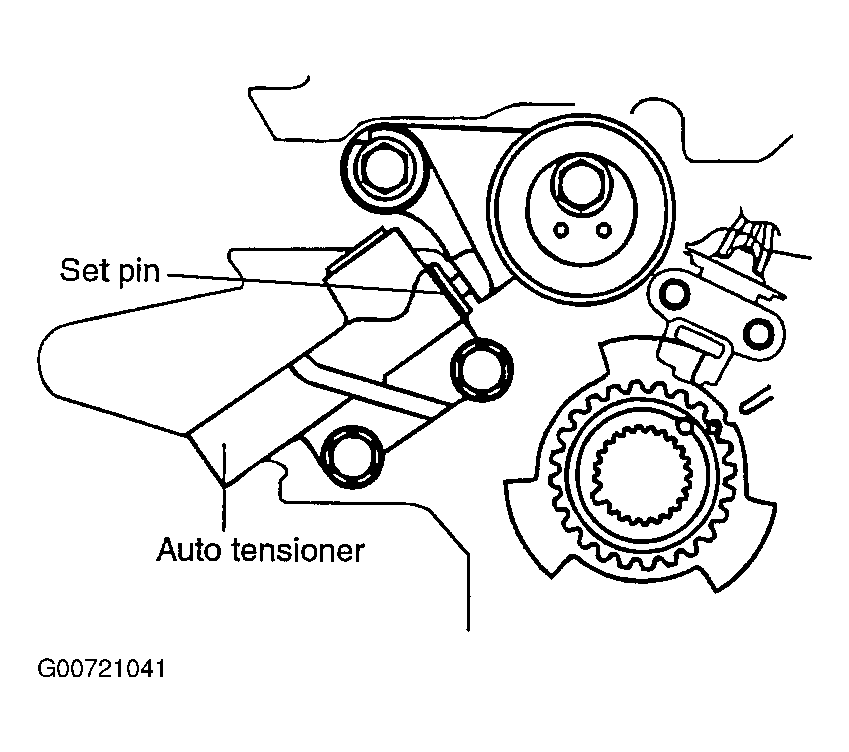

   Fig 6: Installing Timing Belt Auto-Tensioner To Oil Pump Case

   Courtesy of HYUNDAI MOTOR CO.
   1. Clamp it in a vise equipped with soft jaws, in a level position. Use a plain washer if there is a plug at the bottom of the auto tensioner.
   2. Compress the rod slowly with the vise until the set hole in the rod is aligned with set hole in the cylinder.
      Fig 7: Aligning Timing Belt Tensioner Set Hole In Rod With Set Hole In Tensioner Body

      Courtesy of HYUNDAI MOTOR CO.
   3. Insert a set pin through the auto tensioner body and rod.
      CAUTION: Leave the set pin installed in the auto tensioner.
6. Align the timing marks of each sprocket and install the timing belt in this order.

   Crankshaft sprocket --> Idler pulley --> Exhaust camshaft sprocket (LH) --> Intake camshaft sprocket (RH) --> Exhaust camshaft sprocket (RH) --> Tensioner pulley.

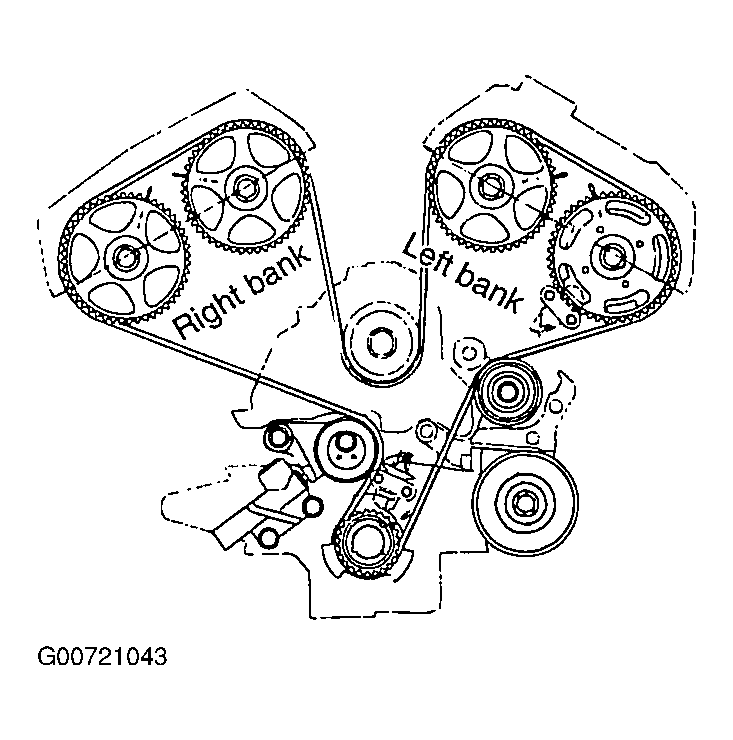

   Fig 8: Installing Timing Belt To Pulleys & Sprockets

   Courtesy of HYUNDAI MOTOR CO.
   NOTE:

   • In this step, No. 1 is in TDC (Compression stroke)
   • Do not insert fingers.
7. After installing the timing belt, reconfirm the timing mark.
8. Pull out the set pin of auto tensioner.
   NOTE:

   1. Rotate the crankshaft 2 rotation clockwise and measure the projected load of auto tensioner in the TDC (# 1 compression stroke) after 5 minutes.
   2. Check the projected length is 3.8 ~ 4.5 mm.
   3. Check again if the timing marks of each sprocket is with in specified position.
9. Install the engine support bracket.
10. Install the timing belt cover.
11. Install the alternator and drive belt.
12. Install the engine mounting bracket.
13. Install the side cover.
14. Install the wheel of passenger side.
