XG350 Base
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Fuel System
›
MFI Control System
›
Crankshaft Position Sensor
›
Harness Inspection Procedures
Harness Inspection Procedures

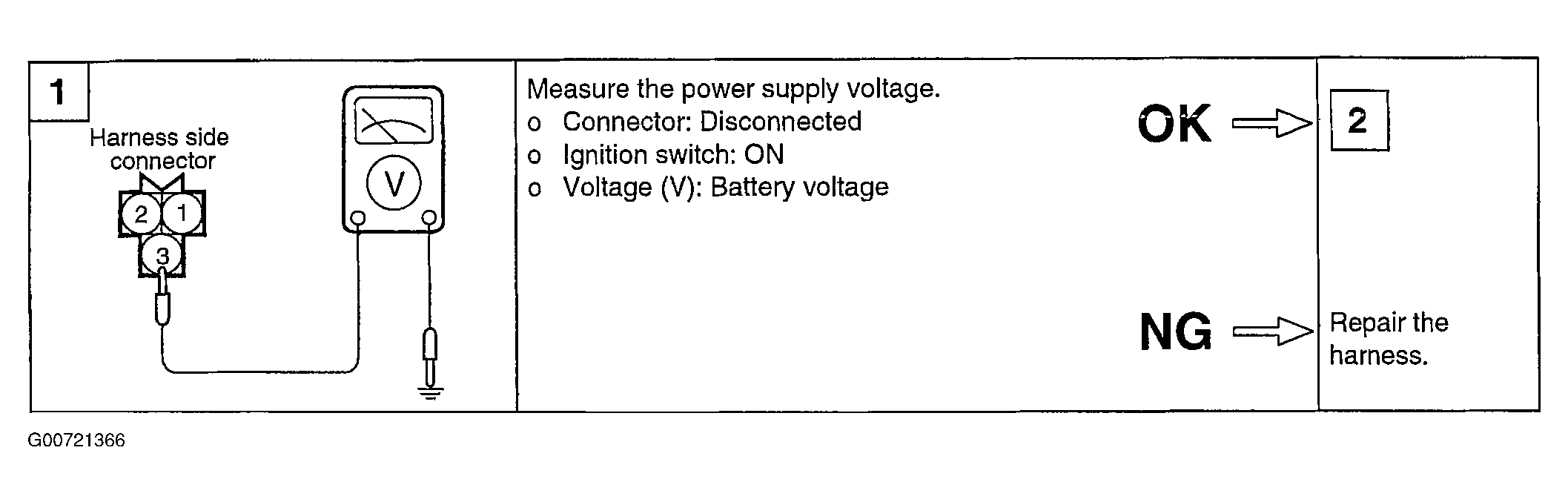

Fig 1: Checking Crankshaft Position Sensor Harness (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

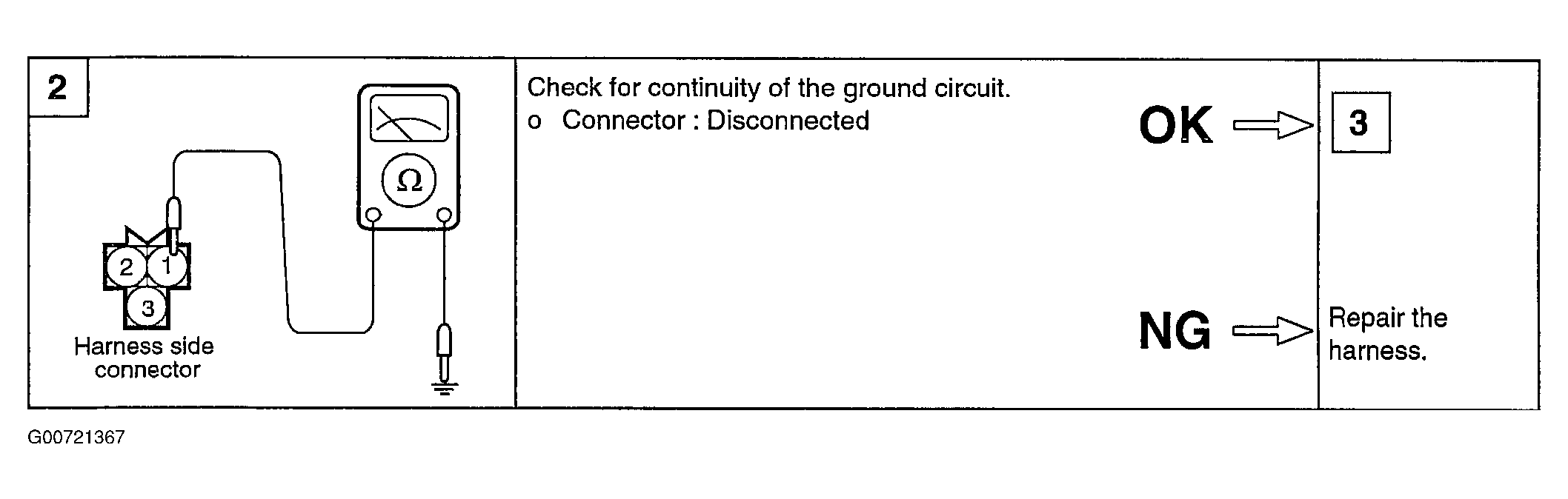

Fig 2: Checking Crankshaft Position Sensor Harness (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

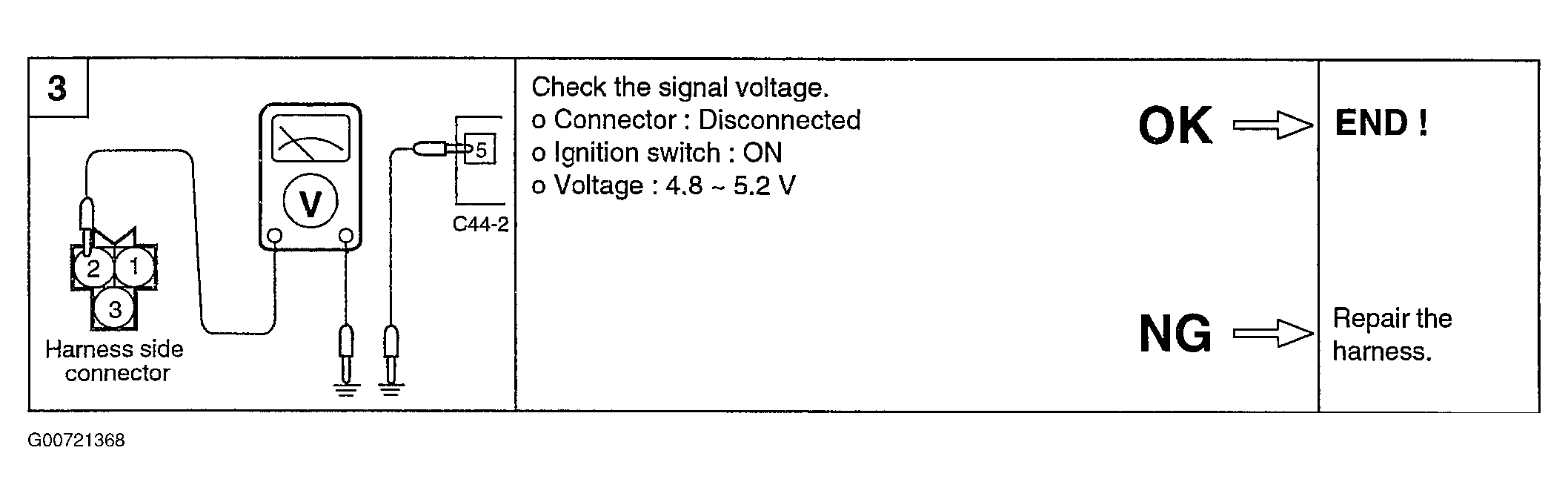

Fig 3: Checking Crankshaft Position Sensor Harness (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
