Trouble Shooting Guide Chart

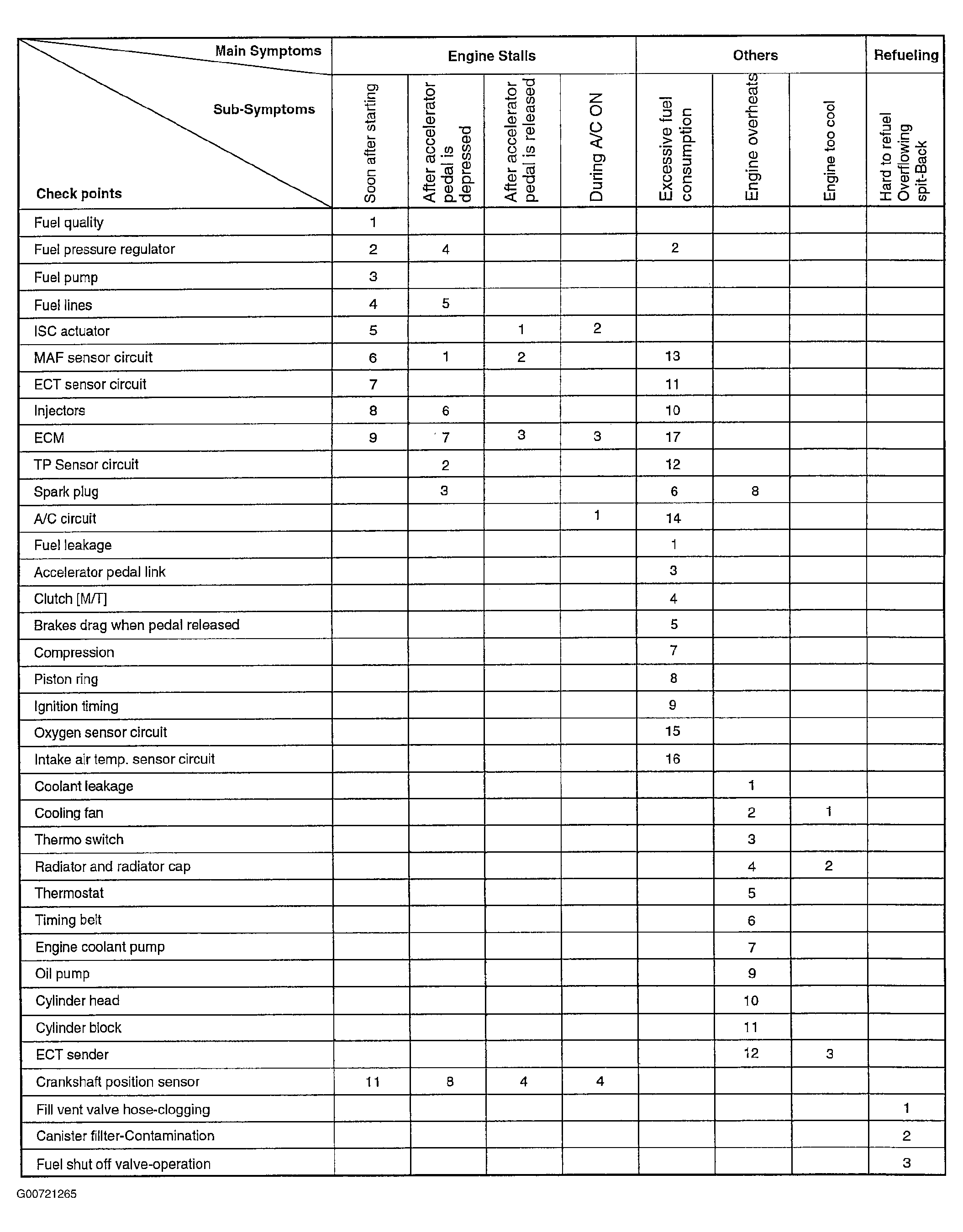

Fig 1: Troubleshooting Guide Chart (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

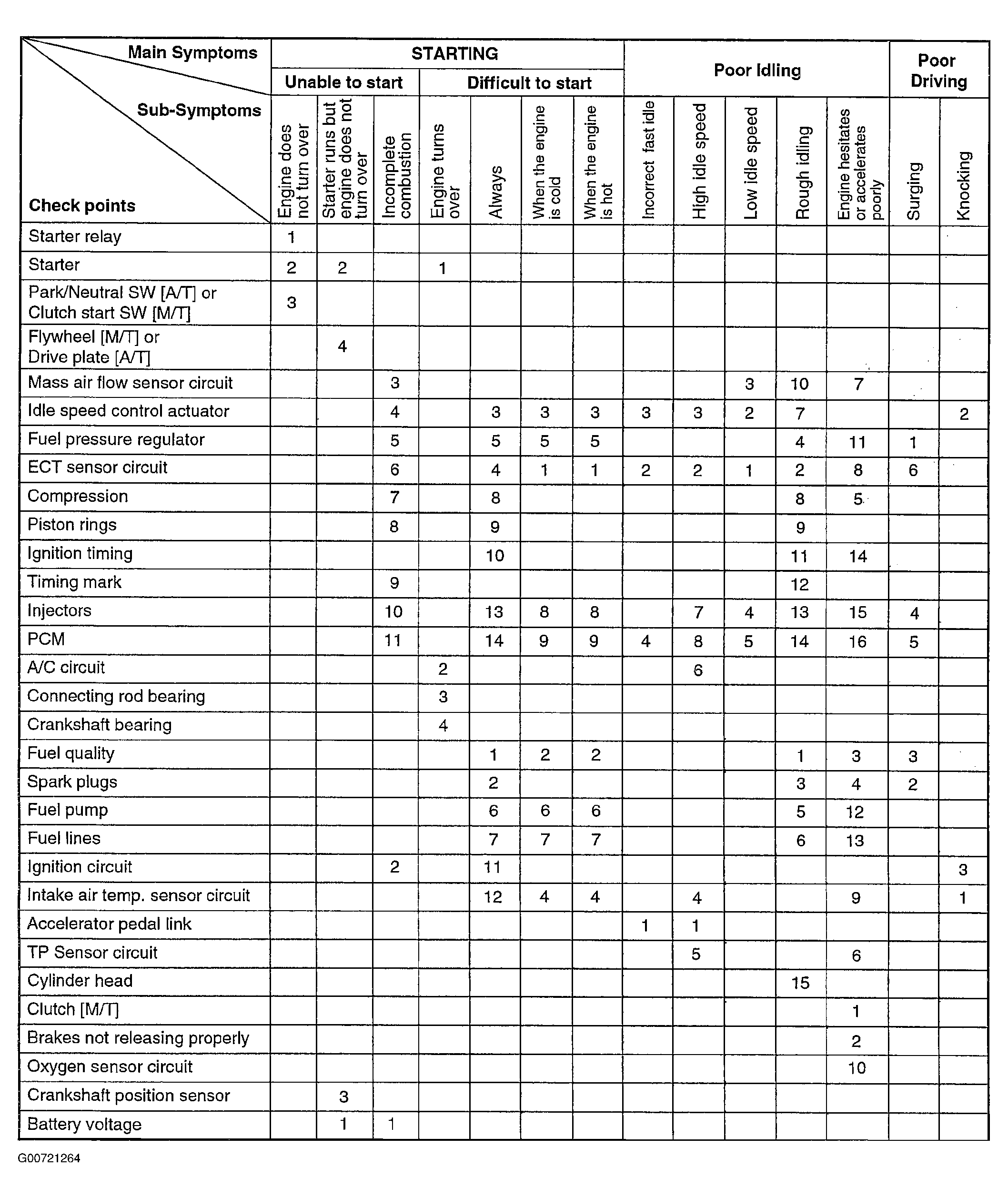

Fig 2: Troubleshooting Guide Chart (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.

NOTE: The number herein means the check order.
