Component Location

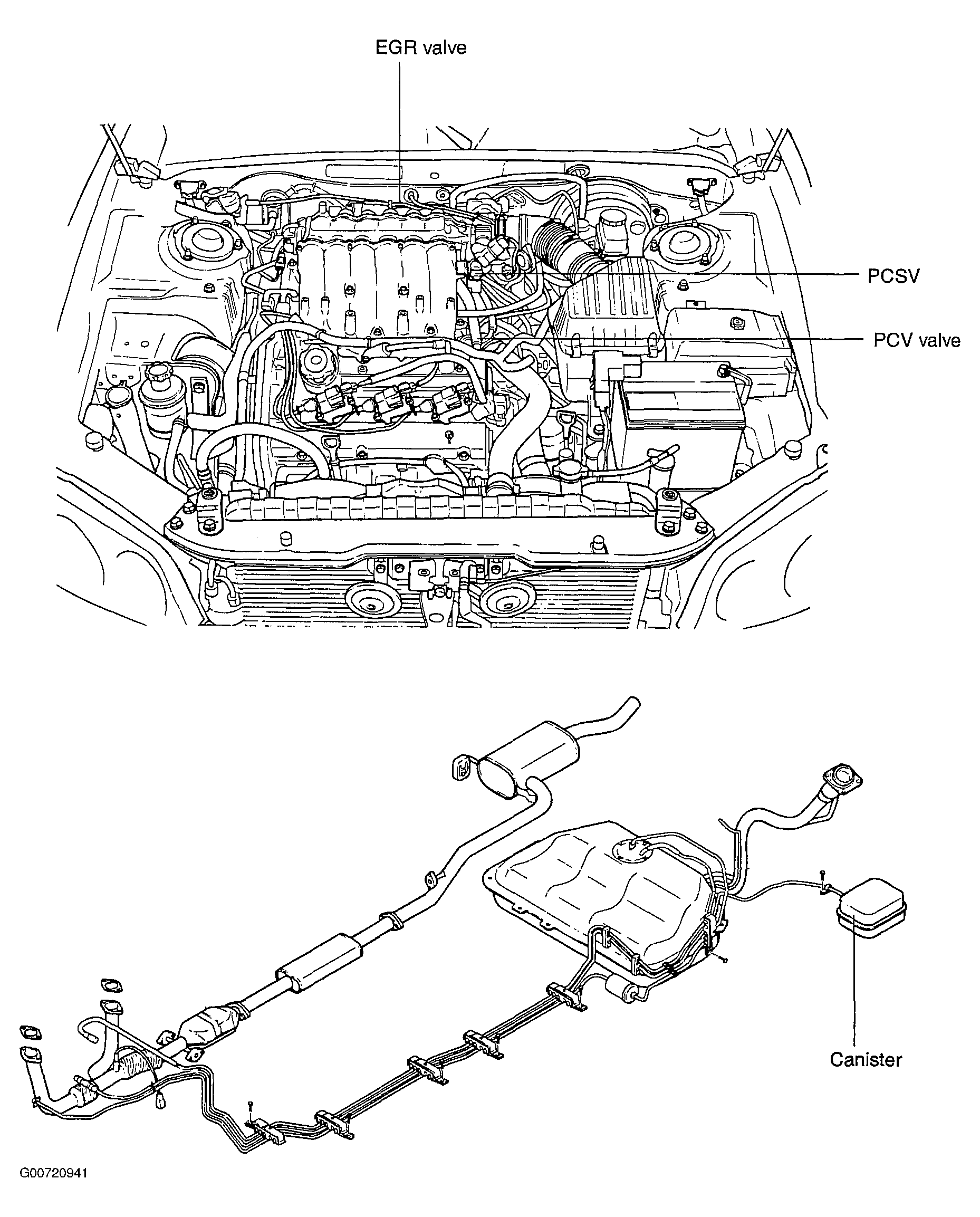

Fig 1: Emission Control System Component Locations (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

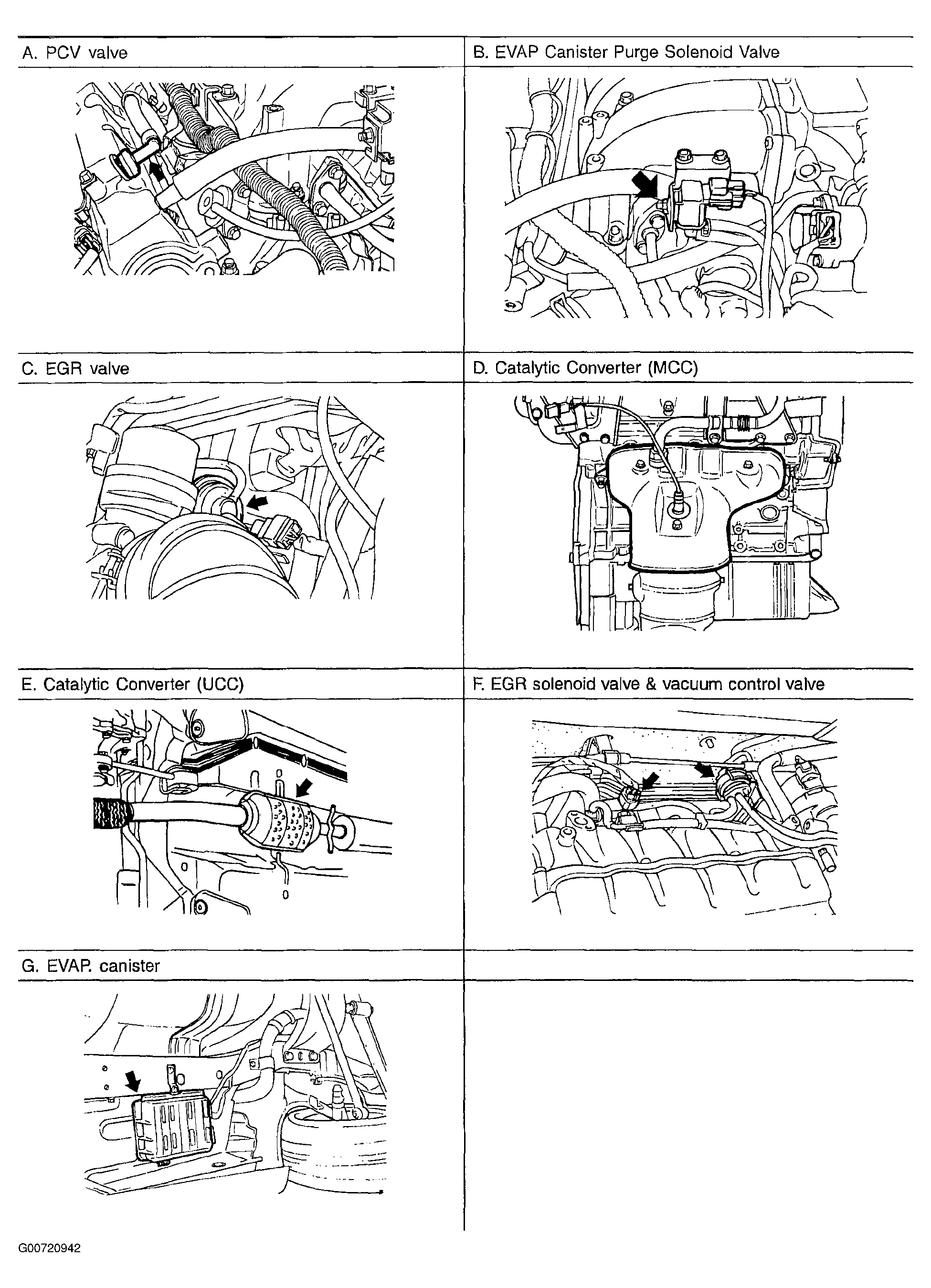

Fig 2: Emission Control System Component Locations (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
