Electronic Power Steering System
›
EPS Control Module Circuit
EPS Control Module Circuit

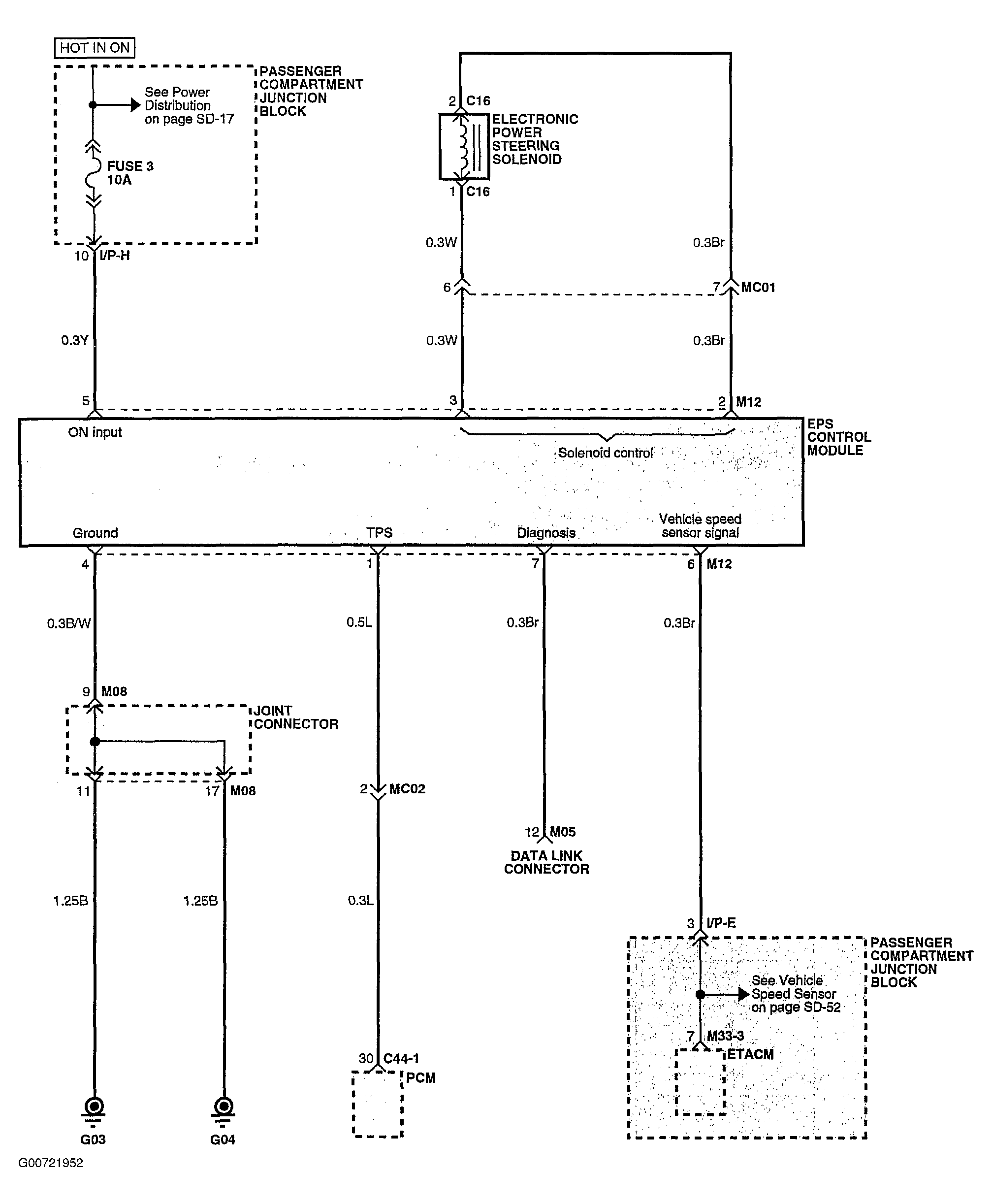

Fig 1: EPS Control Module Circuit
Courtesy of HYUNDAI MOTOR CO.
