Cluster Replacement

  1. Remove the cluster facia panel (See CLUSTER FACIA PANEL REPLACEMENT  ).
  2. Loosen the mounting screws.

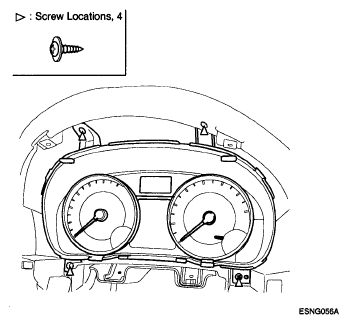

    Fig 1: Identifying Cluster Screws
    G04802767Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the cluster connector (A), then remove the cluster.
    Fig 2: Locating Cluster Connector
    G04802768Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly.
