Automatic Transaxle: Component(1): Component(2)

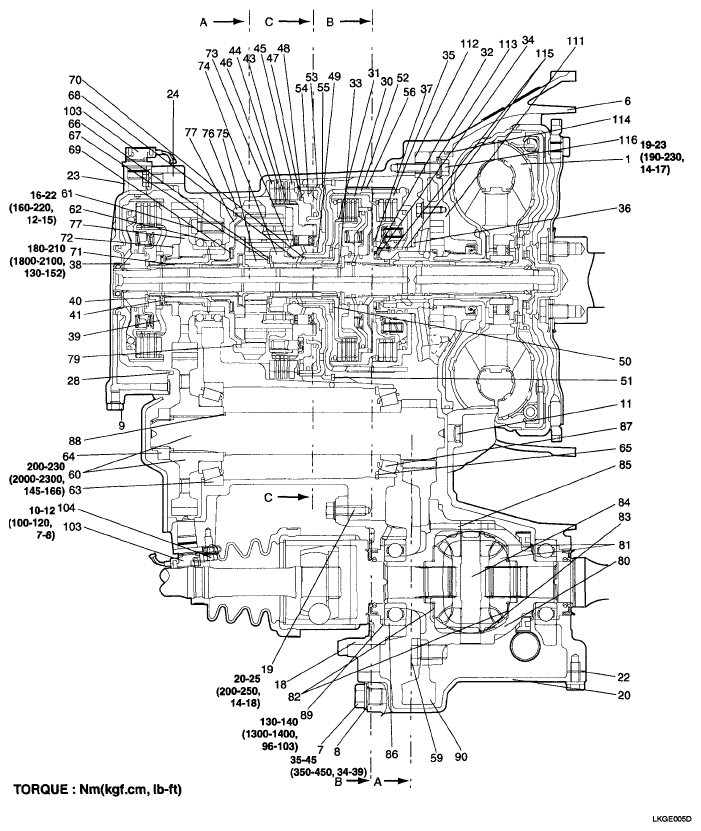

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications (2 Of 6)
G04802148Courtesy of HYUNDAI MOTOR CO.
