Automatic Transaxle: Component(1): Component(4)

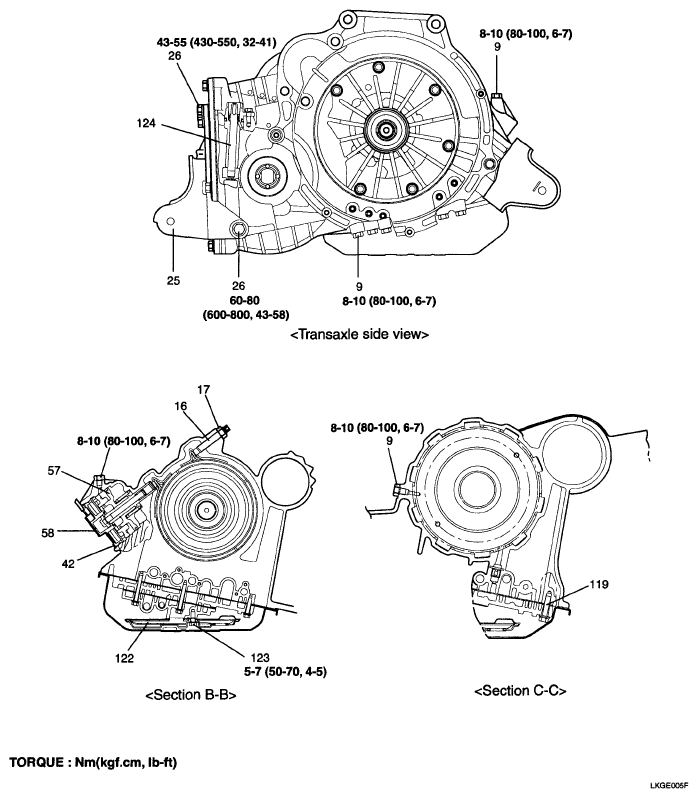

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications (4 Of 6)
G04802150Courtesy of HYUNDAI MOTOR CO.
