Automatic Transaxle: Component(1): Component(6)

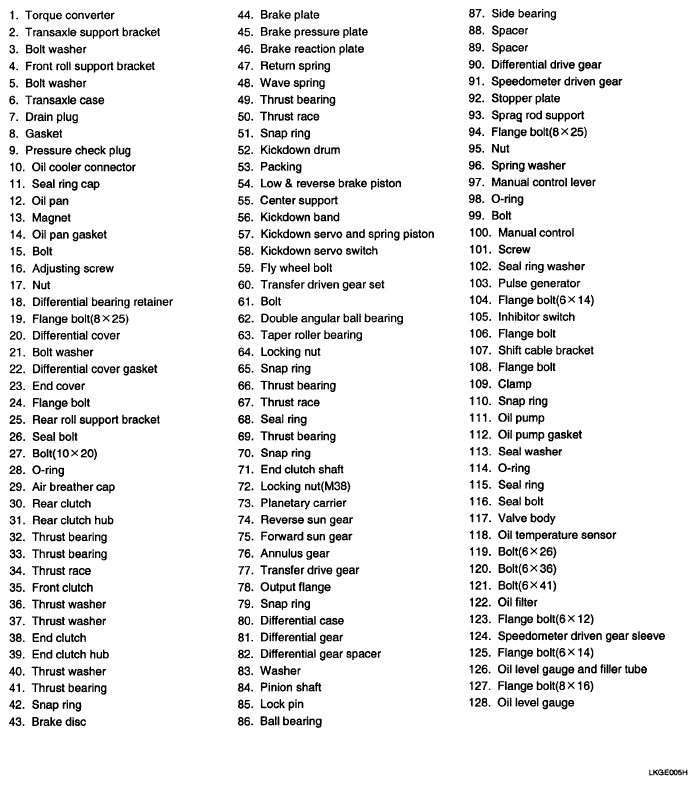

Fig 1: Identifying Automatic Transaxle Components
G04802152Courtesy of HYUNDAI MOTOR CO.
