Home › Hyundai › 2006 › Accent Automatic › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle System (A4AF3) › Automatic Transaxle System › Automatic Transaxle › Component(1) › Notes

Automatic Transaxle: Component(1): Notes

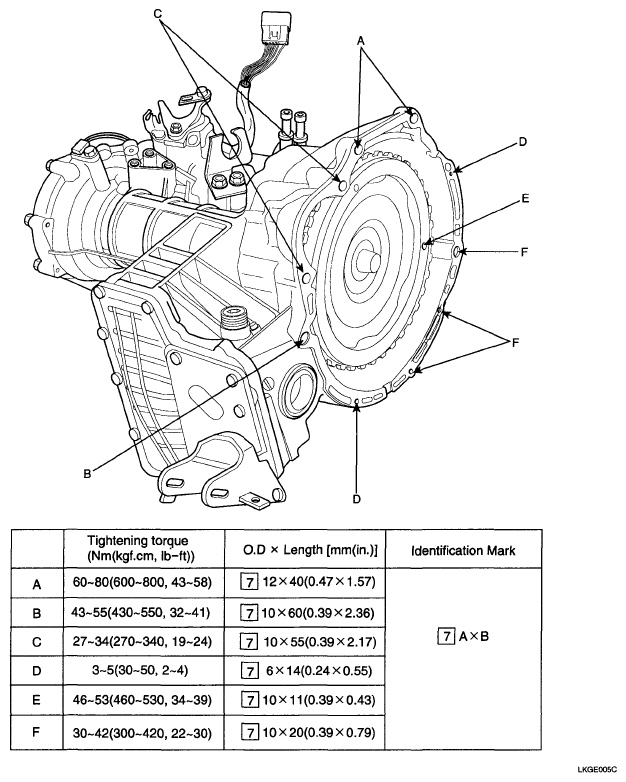

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications (1 Of 6)
G04802147Courtesy of HYUNDAI MOTOR CO.
