Component Inspection

CHECK "TRANSAXLE FLUID TEMPERATURE SENSOR"

Ignition "OFF".
Disconnect the "TRANSAXLE FLUID TEMPERATURE SENSOR" connector.

Measure the resistance between terminals "1" and "2" of the "TRANSMISSION FLUID TEMPERATURE SENSOR".

Specification: Refer to "Reference data"

[REFERENCE DATA]

RESISTANCE SPECIFICATION

Temp.[°C(°F)]	Resistance(kΩ)	Temp.[°C(°F)]	Resistance(kΩ)
-40(-40)	139.5	80(176)	1.08
-20(-4)	47.7	100(212)	0.63
0(32)	18.6	120(248)	0.38
20(68)	8.1	140(284)	0.25
40(104)	3.8	160(320)	0.16
60(140)	1.98

Fig 1: Measuring Resistance Between Terminals 1 & 2 Of Transmission Fluid Temperature Sensor

G04802075

Courtesy of HYUNDAI MOTOR CO.

Is resistance within specifications?
YES : --> Go to "CHECK PCM" as below.

NO : --> Replace "TRANSAXLE FLUID TEMPERATURE SENSOR" as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

CHECK PCM
1. Ignition "ON" & Engine "OFF".
2. Connect "TRANSAXLE FLUID TEMPERATURE SENSOR" connector.
3. Install scantool and select SIMU-SCAN mode.
4. Simulate voltage (0→5V) to "TRANSMISSION FLUID TEMPERATURE SENSOR" signal circuit.

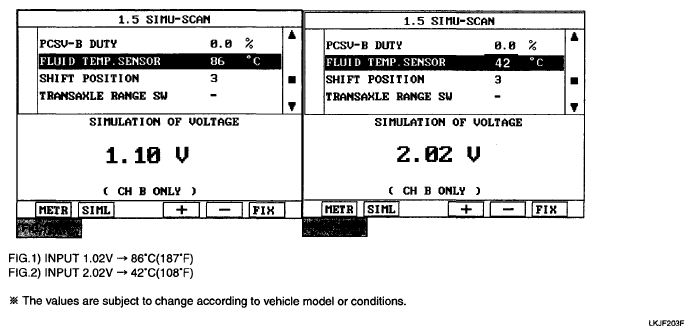

  Fig 2: Scan Tool Display - Transaxle Fluid Temperature Sensor
  Courtesy of HYUNDAI MOTOR CO.
5. Is FLUID TEMP. SENSOR signal value changed according to simulation voltage?
  YES : --> Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

  NO : --> Substitute with a known-good PCM and check for proper operation. If the problem is corrected, replace PCM as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
