Mechanical System: Components

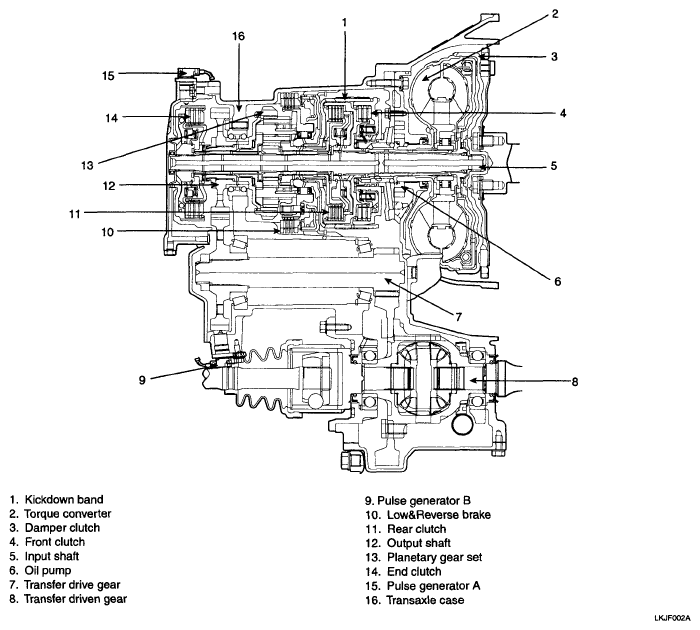

Fig 1: Identifying Mechanical System Components
G04802015Courtesy of HYUNDAI MOTOR CO.
