Cluster Facia Panel Replacement

NOTE:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Tilt the steering column down.
After disconnecting the trip sensor connector (A), remove the cluster facia panel (B).

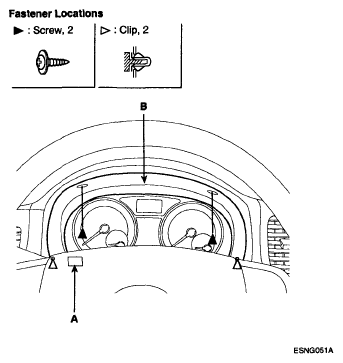

Fig 1: Locating Trip Sensor Connector And Cluster Facia Panel
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
