Glove Box Replacement

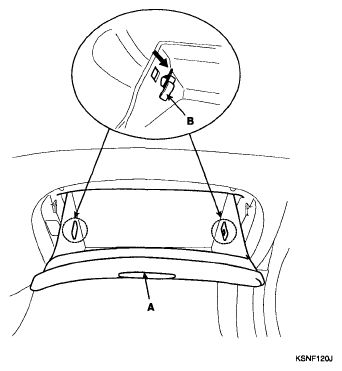

Disconnect the damper (B) from the glove box (A).

Fig 1: Locating Damper And Glove Box
Courtesy of HYUNDAI MOTOR CO.

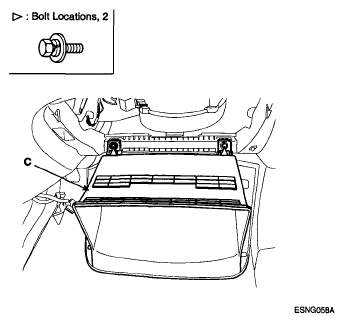

Remove the glove box (C).

Fig 2: Locating Glove Box
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
