Manual Transaxle System (M5CF1)
›
Manual Transaxle System
›
Manual Transaxle Shift Control System
›
Components (1)
Components (1)

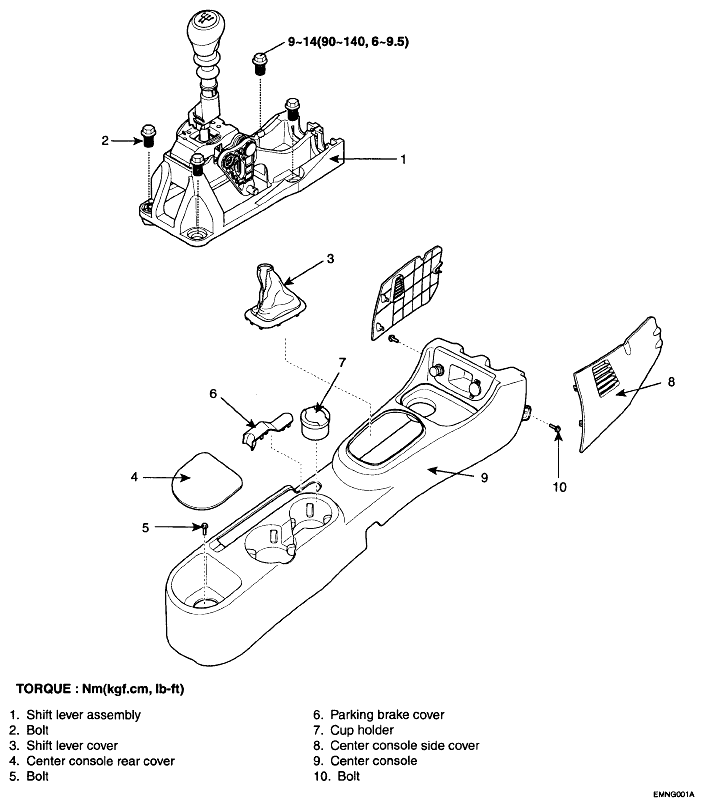

Fig 1: Manual Transaxle Shift Control System Replacement Components With Torque Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
