Azera Limited
›
Repair and Diagnosis
›
Electrical
›
Charging Systems
›
Charging System
›
Circuit Diagram For Charging System
Circuit Diagram For Charging System

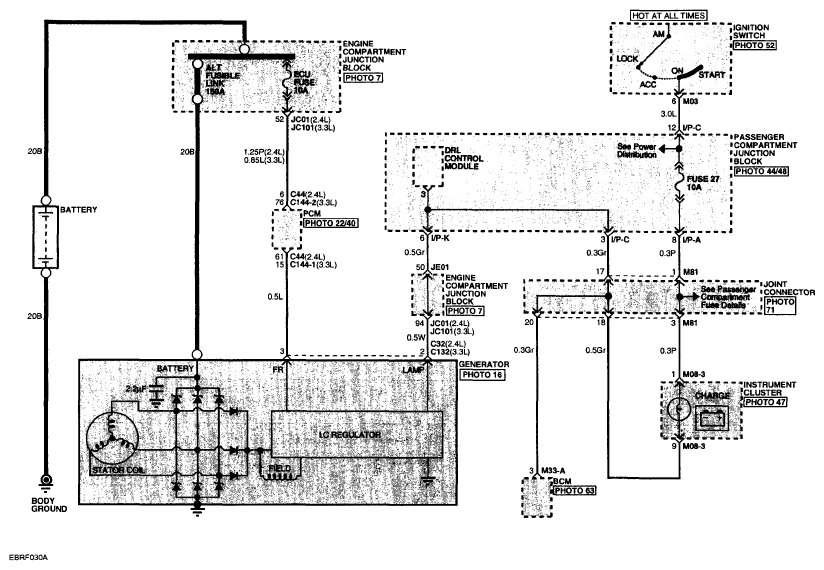

Fig 1: Circuit Diagram For Charging System
