Intake And Exhaust System: Component

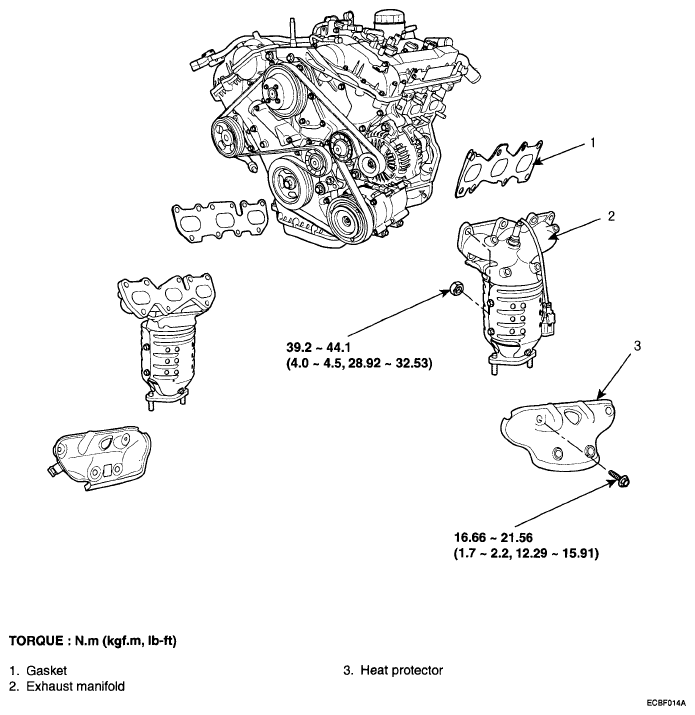

Fig 1: Intake And Exhaust System Replacement Components With Torque Specifications (1 Of 3)

Courtesy of HYUNDAI MOTOR CO.

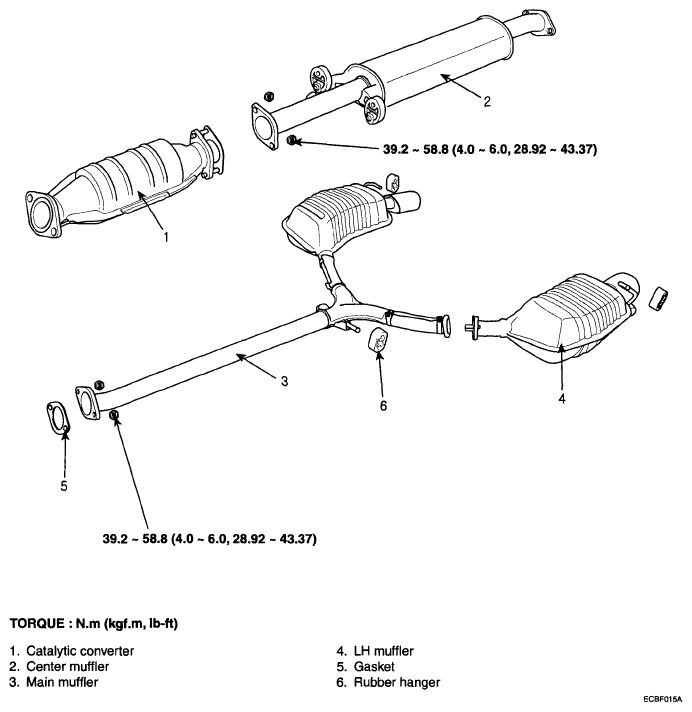

Fig 2: Intake And Exhaust System And Catalytic Converter Replacement Components With Torque Specifications (2 Of 3)

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Intake And Exhaust System And Catalytic Converter Replacement Components With Torque Specifications (3 Of 3)

Courtesy of HYUNDAI MOTOR CO.
