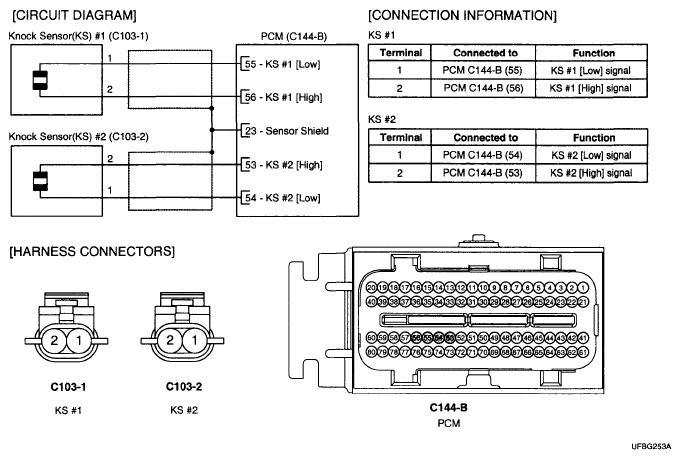

Home › Hyundai › 2006 › Azera SE › Repair and Diagnosis › Engine Performance › System › Engine Control System Diagnosis (1 Of 2) › DTC Troubleshooting Procedures › DTC P0325 Knock Sensor 1 Circuit › Schematic Diagram
