Circuit Diagram

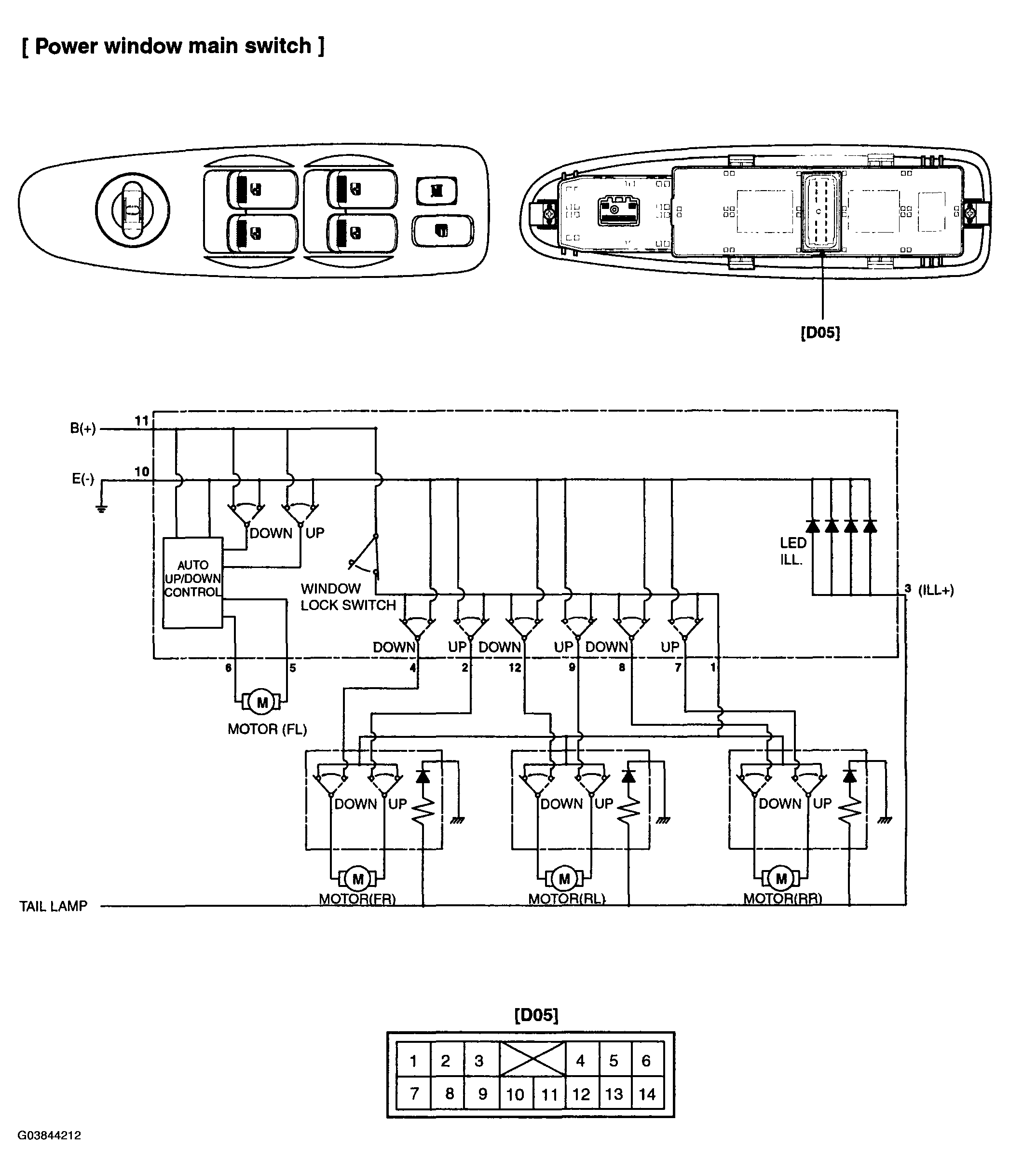

Fig 1: Circuit Diagram - Power Window Switch (Power Window Main Switch)
G03844212Courtesy of HYUNDAI MOTOR CO.

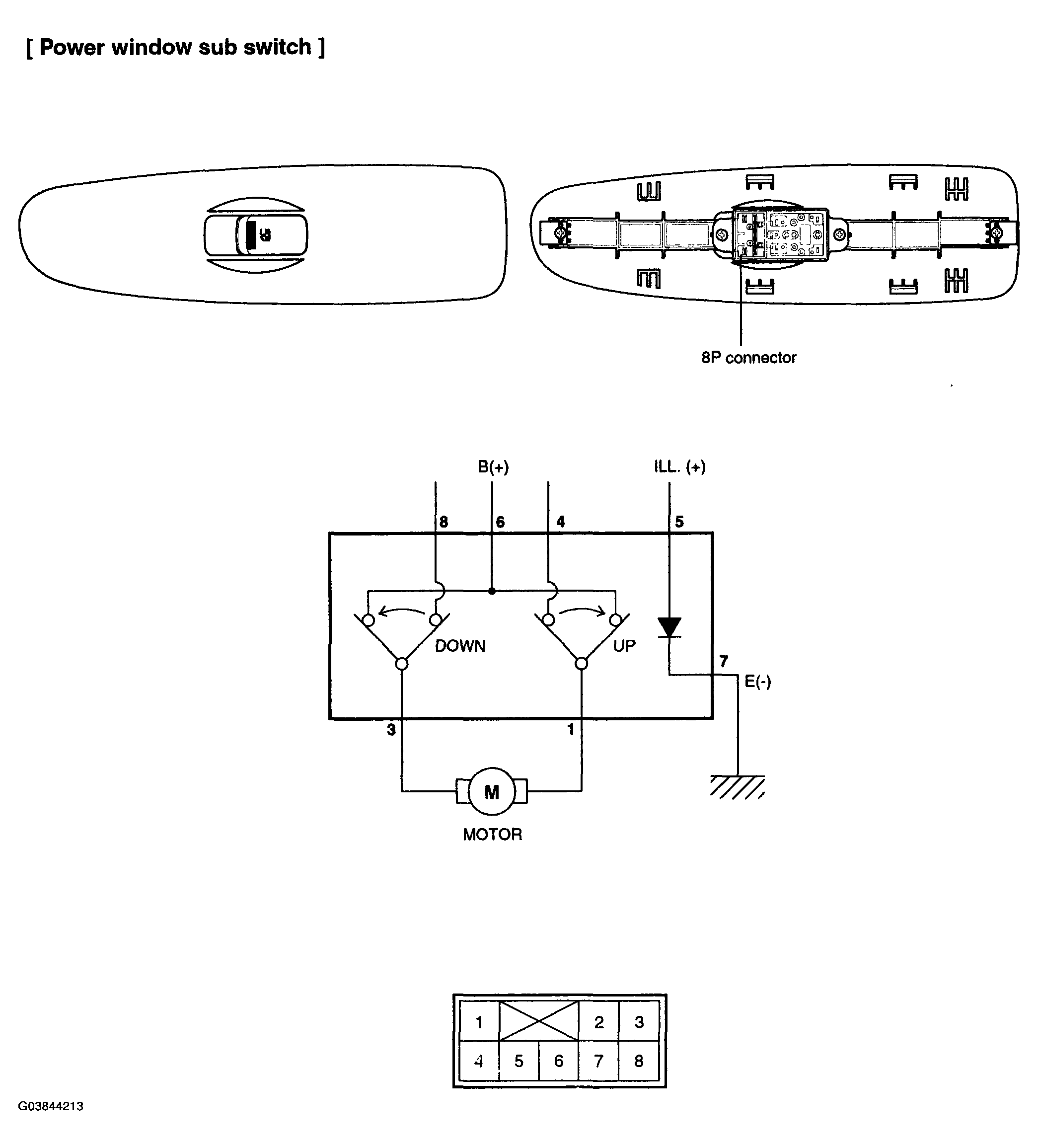

Fig 2: Circuit Diagram - Power Window Switch (Power Window Sub Switch)
G03844213Courtesy of HYUNDAI MOTOR CO.
