Power Window Main Switch

  1. Remove the power window main switch from the driver's door trim panel.

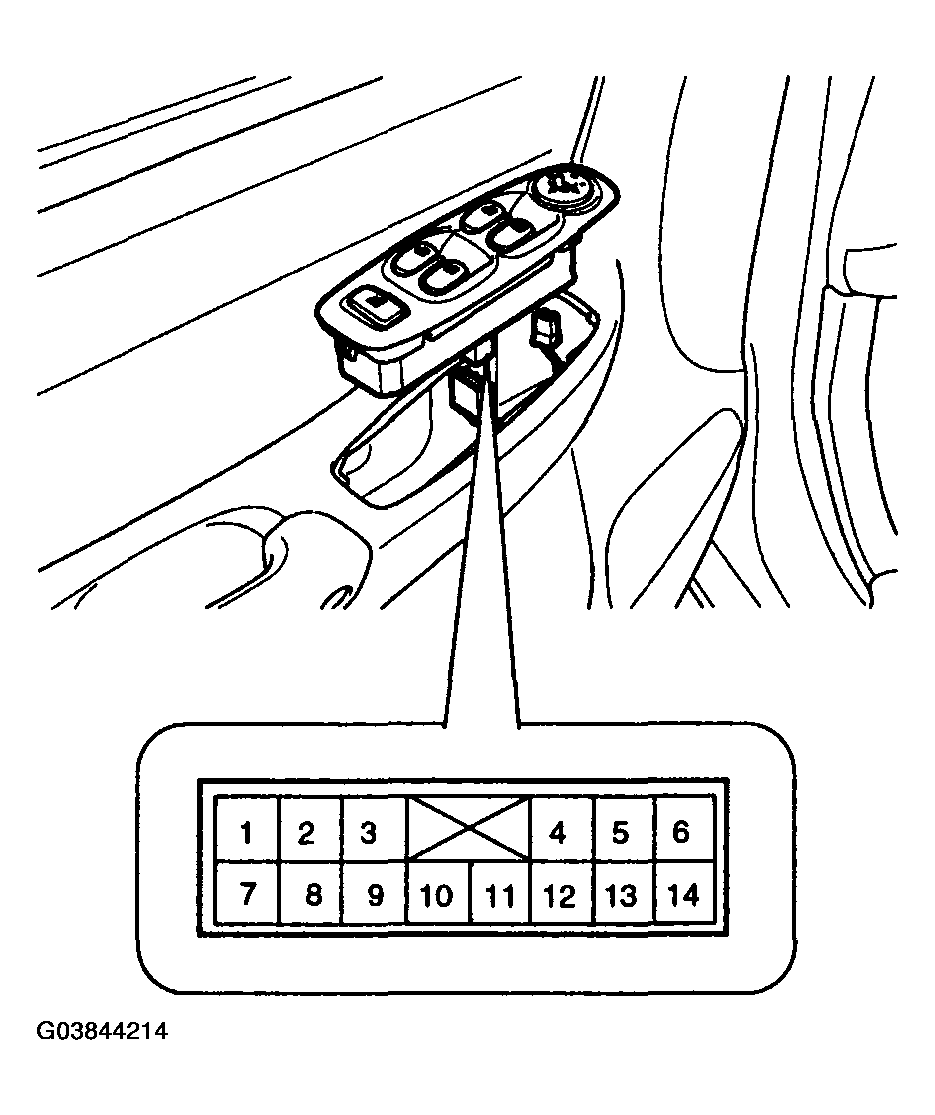

    Fig 1: Identifying Power Window Main Switch Connector
    G03844214Courtesy of HYUNDAI MOTOR CO.
  2. Check for continuity between the terminals.

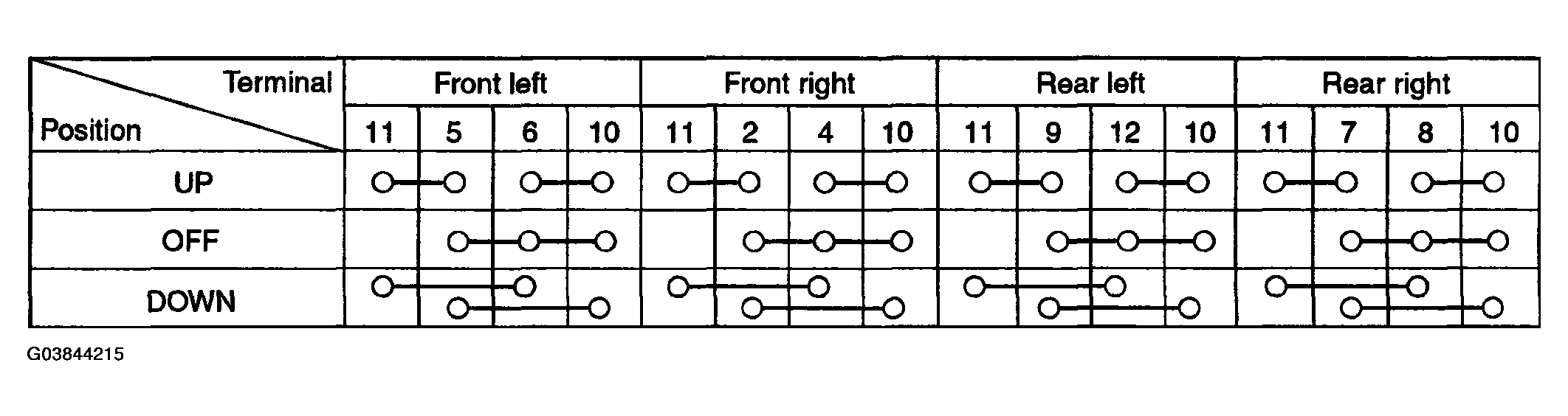

    Fig 2: Checking Power window Main Switch Continuity
    G03844215Courtesy of HYUNDAI MOTOR CO.
