Camshaft Position Sensor

  1. Remove the engine cover (B).
  2. Disconnect the camshaft position sensor connector.
  3. Remove the camshaft position sensor (C).
  4. Installation is the reverse of removal.

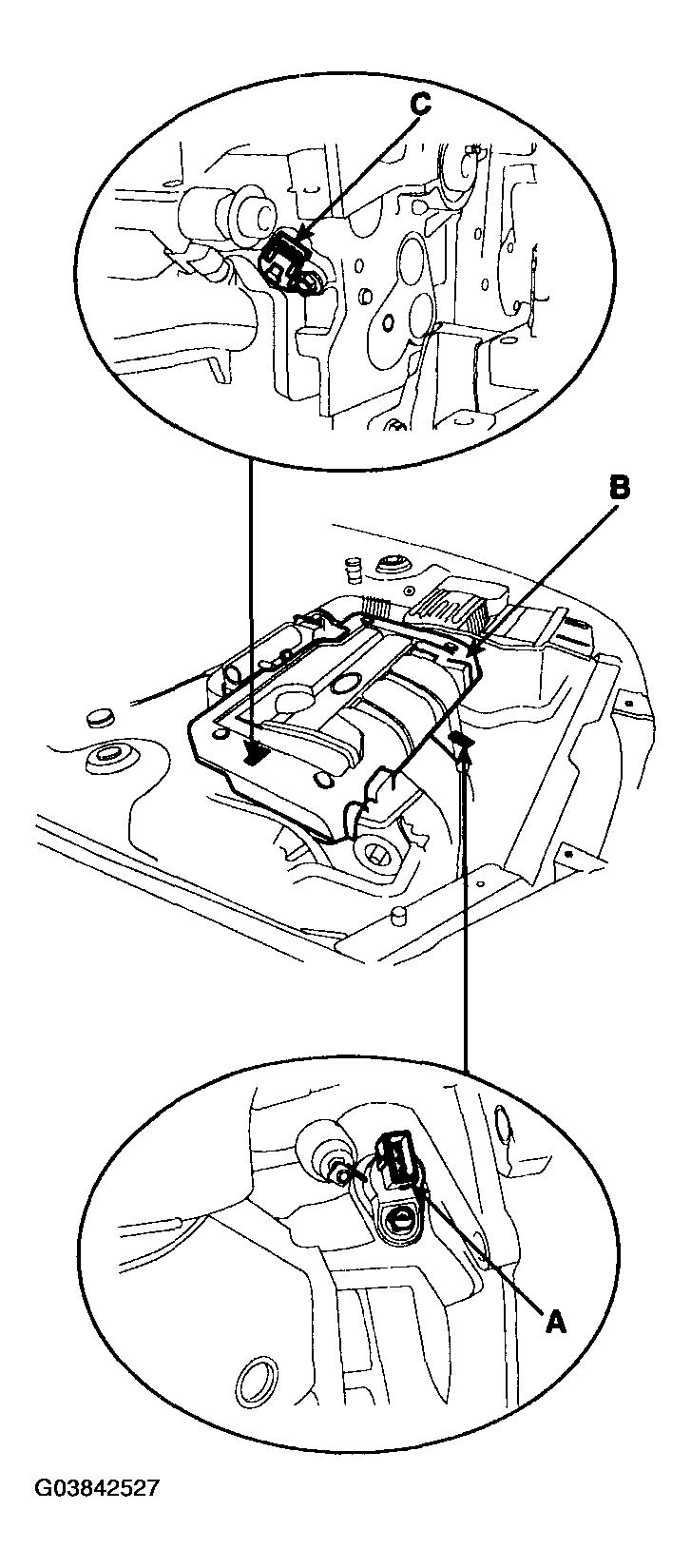

    5. Fig 1: Removing CKP & CMP Sensors
    G03842527Courtesy of HYUNDAI MOTOR CO.
