Circuit Diagram

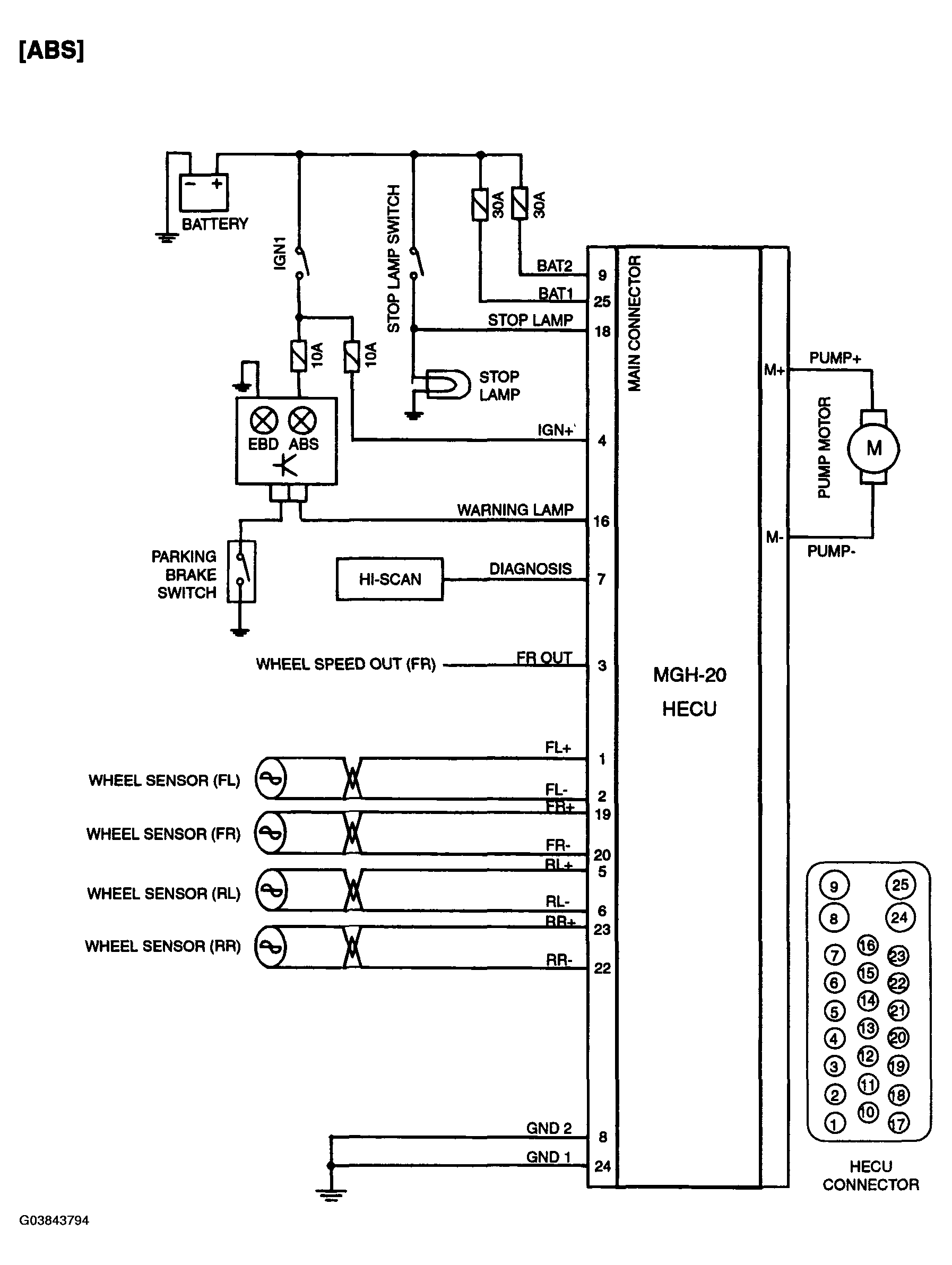

Fig 1: Circuit Diagram - ABS
G03843794Courtesy of HYUNDAI MOTOR CO.

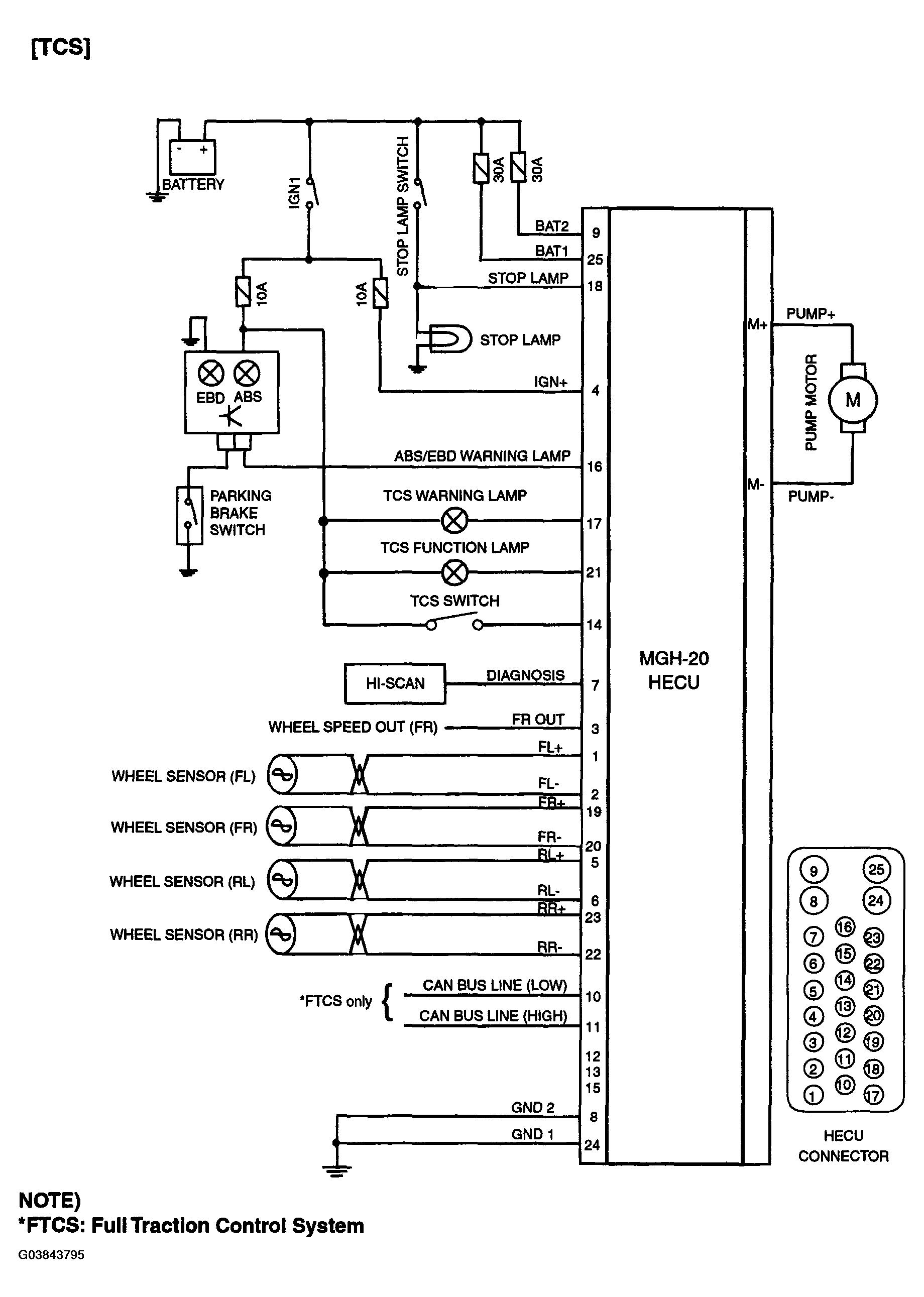

Fig 2: Circuit Diagram - TCS
G03843795Courtesy of HYUNDAI MOTOR CO.
