Cruise Control Switch Replacement

  1. Disconnect the battery negative cable, then disconnect the positive cable, and wait at least three minutes.
  2. Remove the driver's airbag (See RESTRAINTS article).
  3. Disconnect the control switch connector (A).
  4. Loosen the two mounting screws (B), and remove the cruise control switch.

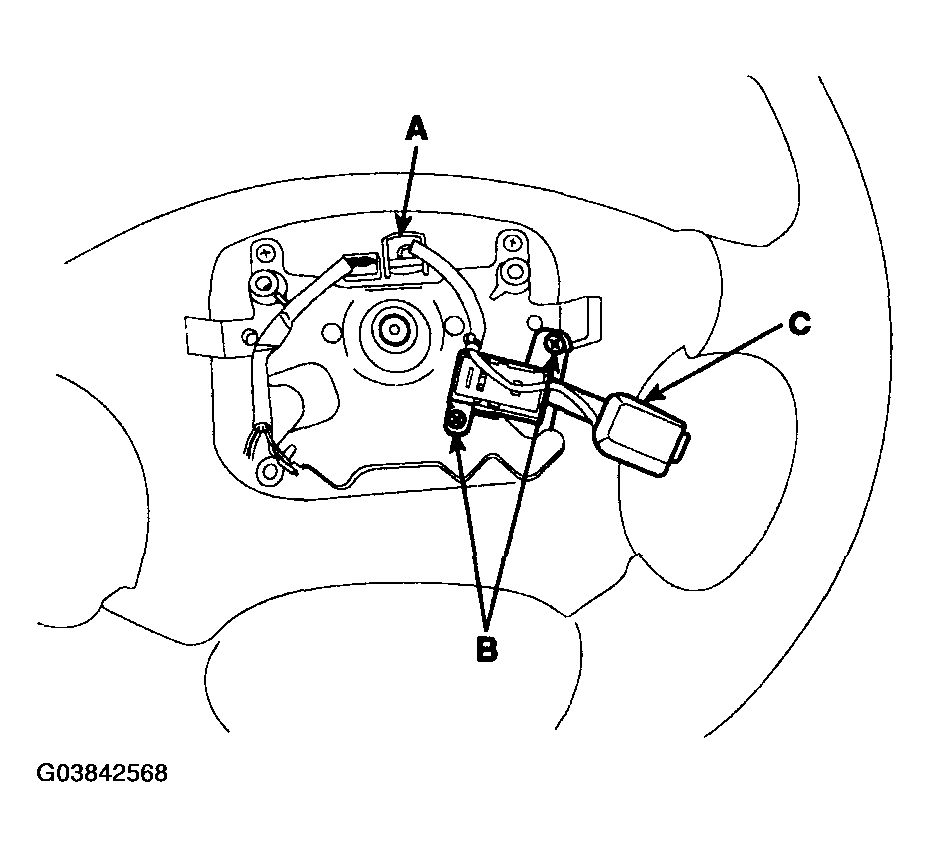

    Fig 1: Removing Cruise Control Switch
    G03842568Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
  6. Connect the battery positive cable and negative cable to the battery.
