Ignition Switch: Removal

Disconnect the negative(-) battery terminal.

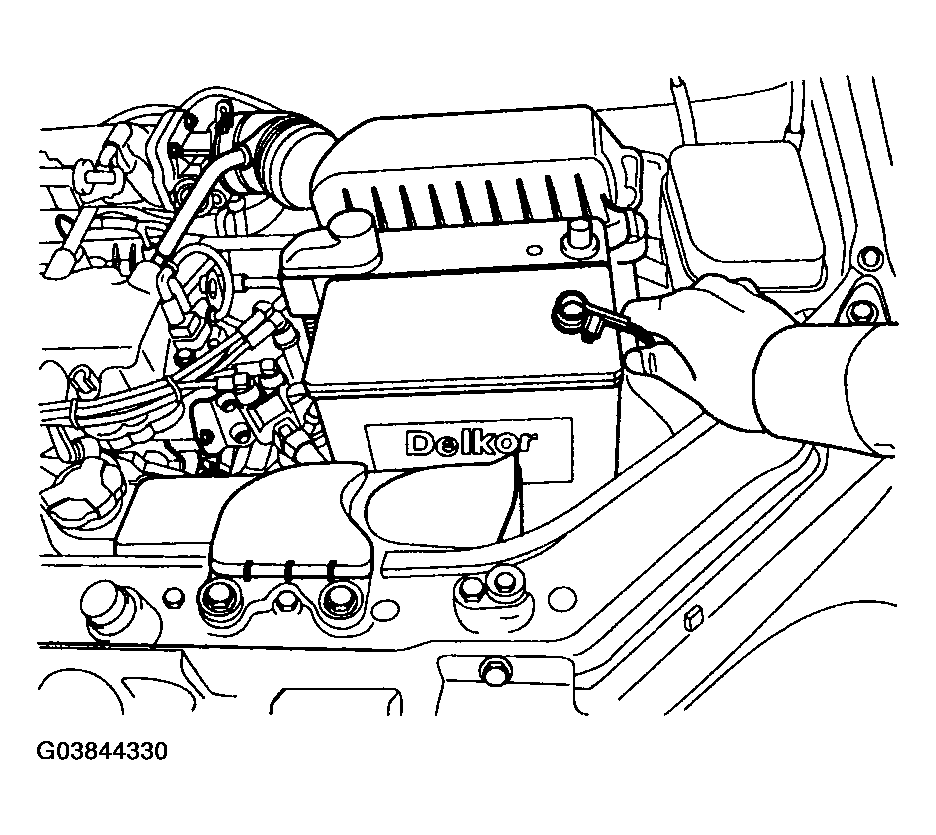

Fig 1: Disconnecting Negative(-) Battery Terminal
Courtesy of HYUNDAI MOTOR CO.
Remove the 2 bolts(A) and disconnect the airbag connector and the horn connector, then remove the airbag module.
CAUTION: Remove the horn pad only for vehicle without airbag.

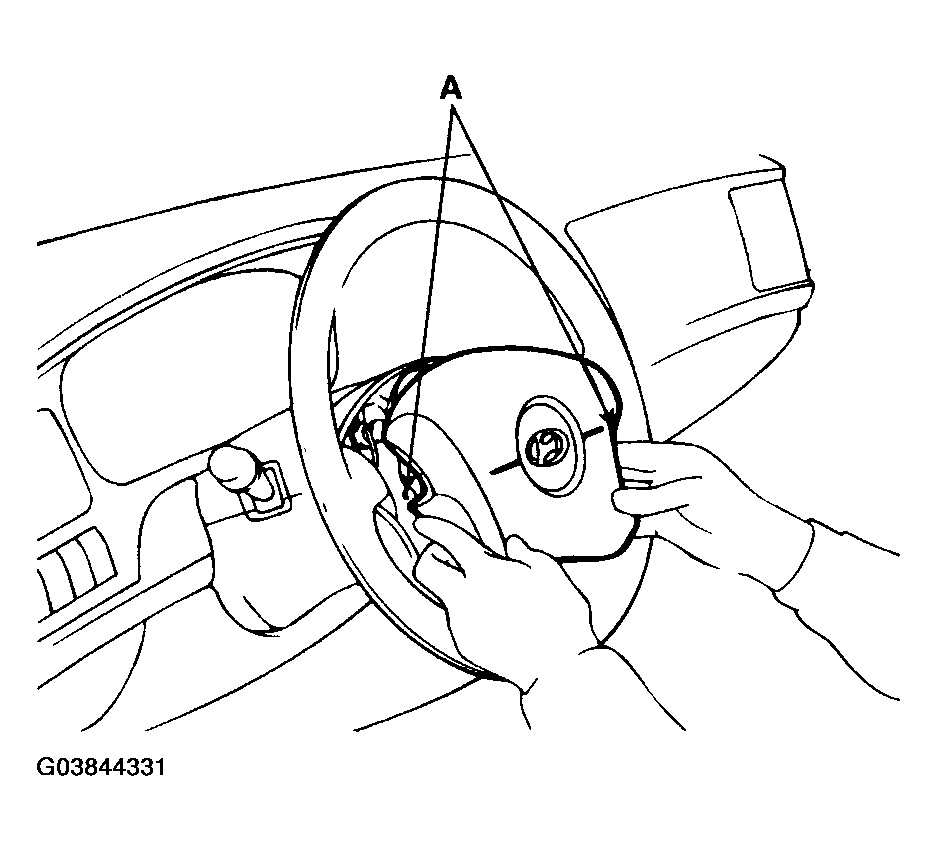

Fig 2: Identifying 2 Bolts And Airbag Module
Courtesy of HYUNDAI MOTOR CO.
Remove the steering wheel lock nut(A).

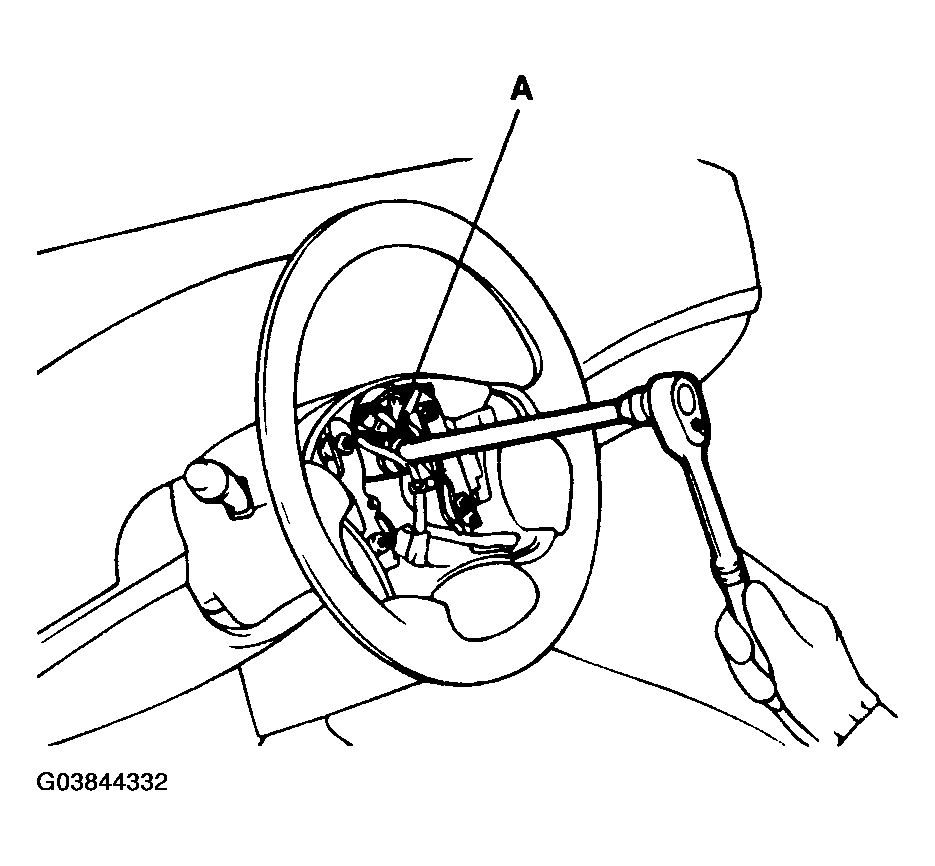

Fig 3: Removing Steering Wheel Lock Nut
Courtesy of HYUNDAI MOTOR CO.
Remove the steering wheel(A) with special tool (09561-11002).
CAUTION: Do not hammer on the steering wheel to remove it. Doing so may damage the collapsible mechanism.

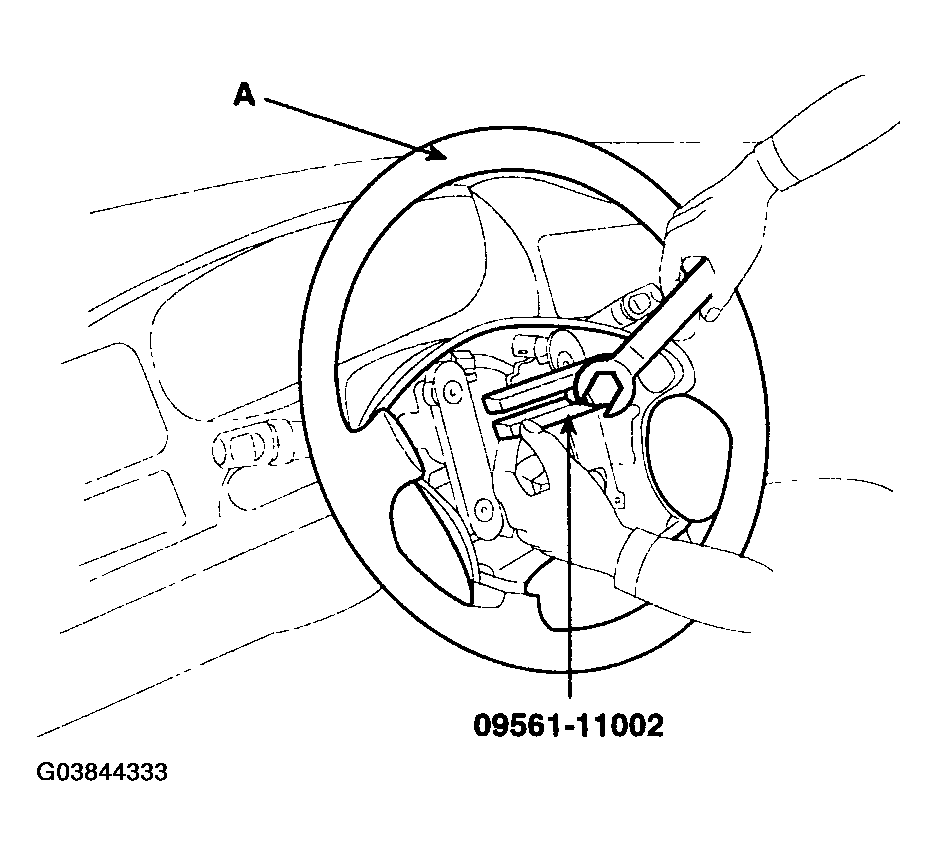

Fig 4: Removing Steering Wheel With Special Tool
Courtesy of HYUNDAI MOTOR CO.
Remove the steering column shroud after removing 3 screws(A).

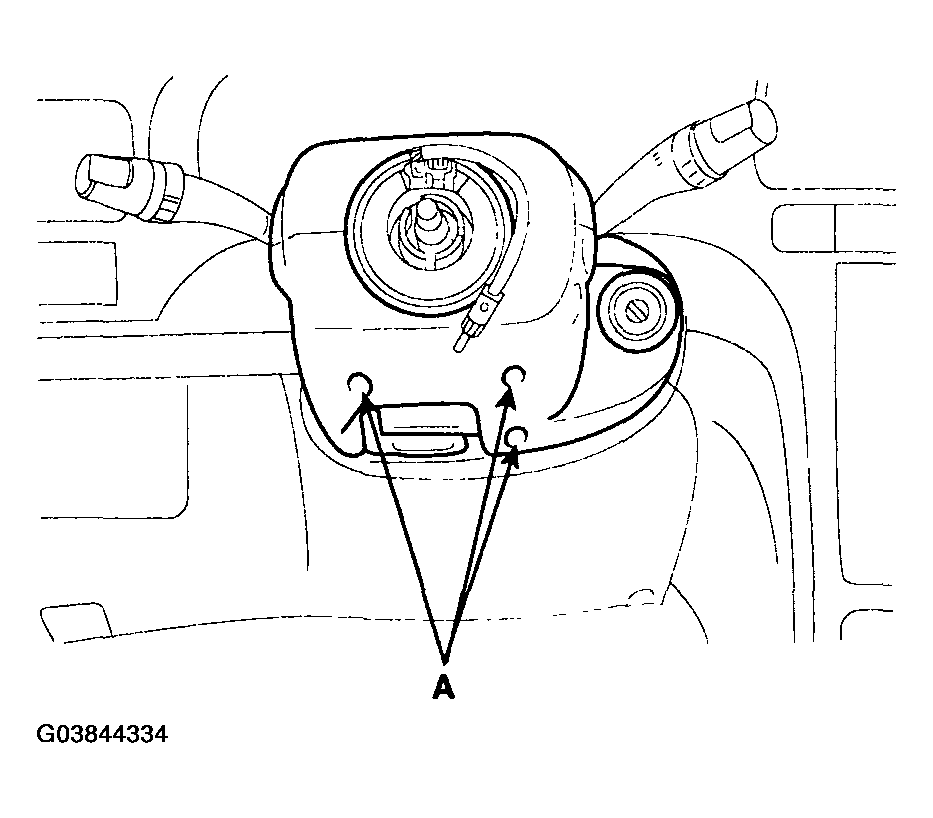

Fig 5: Removing 3 Screws And Steering Column Shroud
Courtesy of HYUNDAI MOTOR CO.
Remove the 3 screws holding the multi-function switch, then disconnect the wire connector. Remove the multi-function switch assembly.

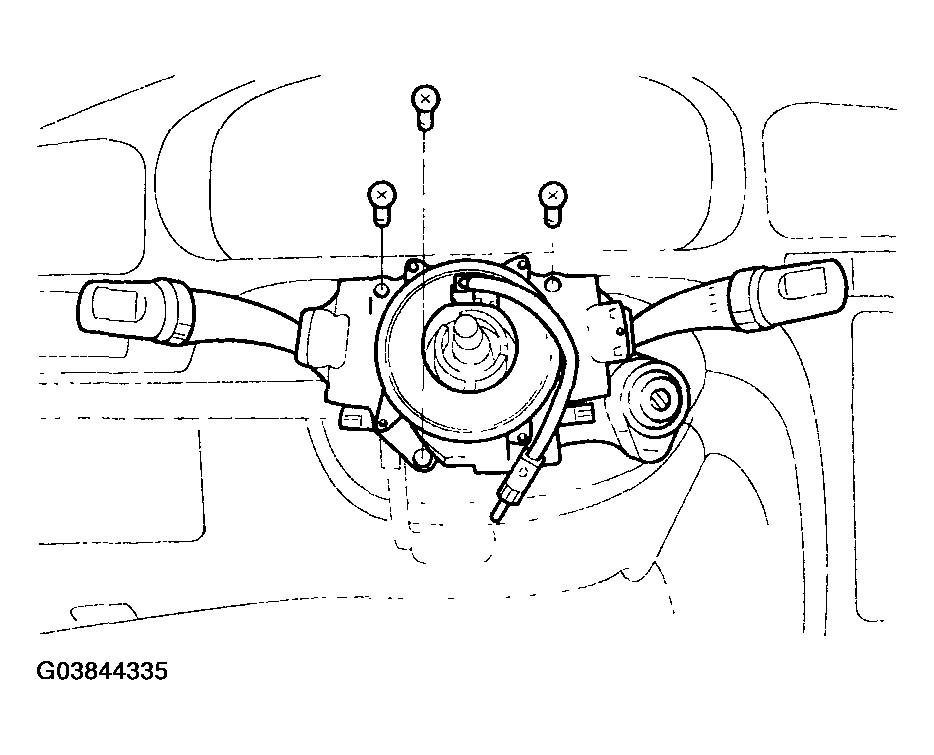

Fig 6: Removing 3 Screws Holding Multifunction Switch
Courtesy of HYUNDAI MOTOR CO.
Remove the 5 bolts connecting the steering column shaft (A) and the universal joint (B) as shown in Fig 7.

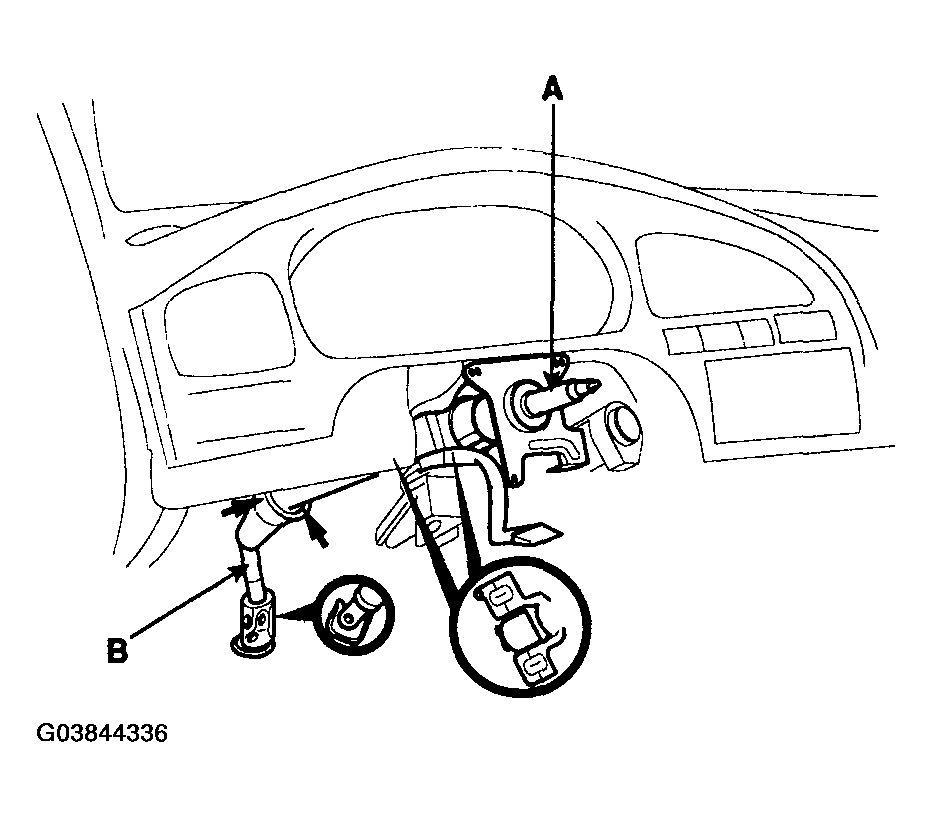

Fig 7: Removing Steering Column Shaft (A) And Universal Joint (B)
Courtesy of HYUNDAI MOTOR CO.
Remove the key lock assembly from the steering column shaft. (See STEERING COLUMN/SHAFT )
Installation is the reverse of removal.
