Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Engine Compartment Relay & Fuse Box | In left front corner of engine compartment. See Figure . |
| Passenger Compartment Junction Block | Under left side of dash, near kick panel. See Figure . |

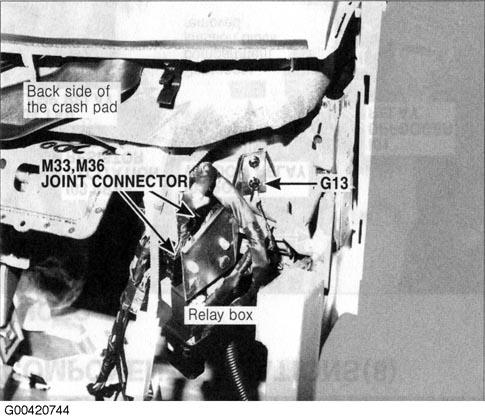

| Passenger Compartment Relay Box | Under left side of dash, beside passenger compartment junction block. See Figure . |
