Components Location
Components Location

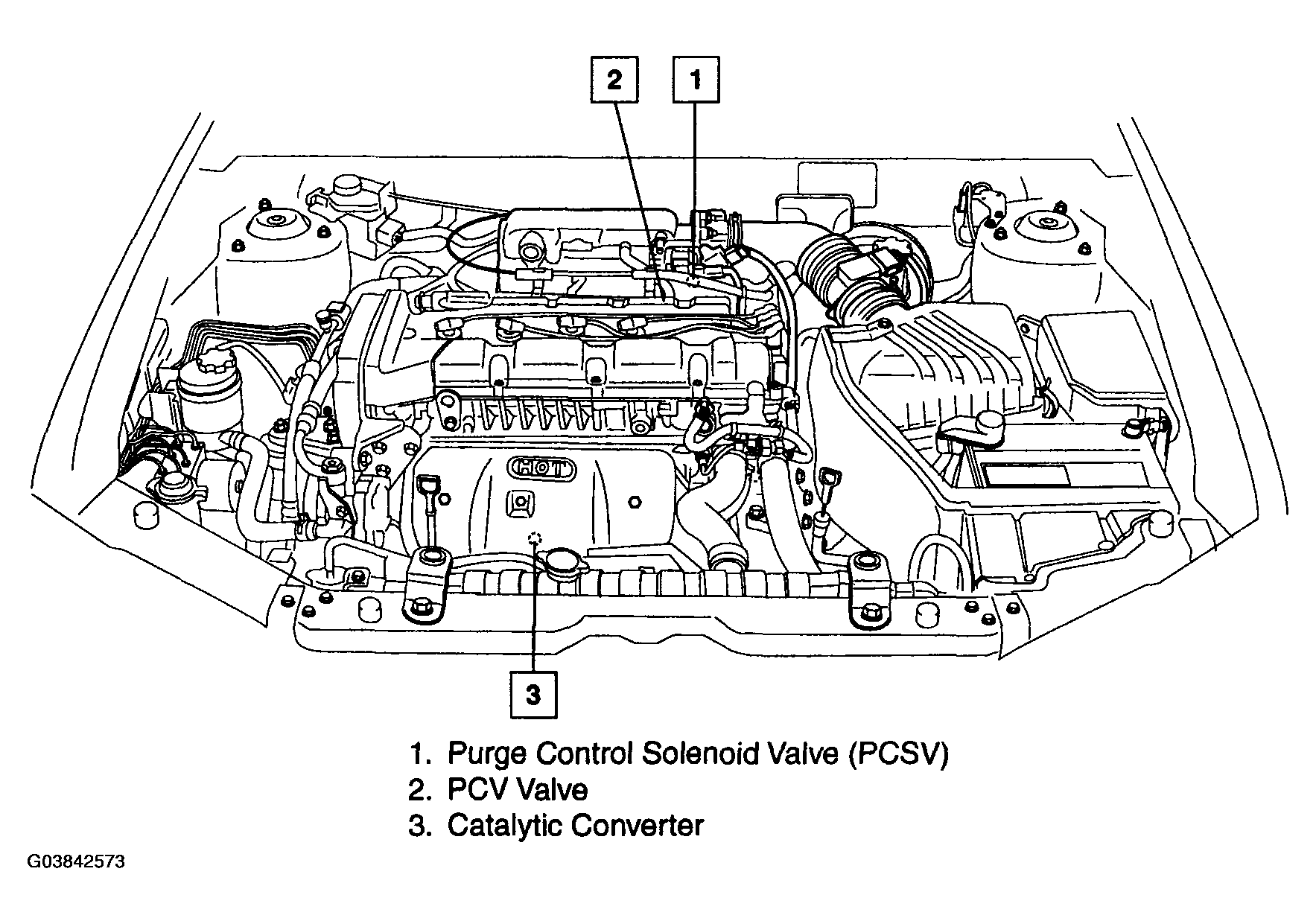

Fig 1: Locating Emission Control System Components (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

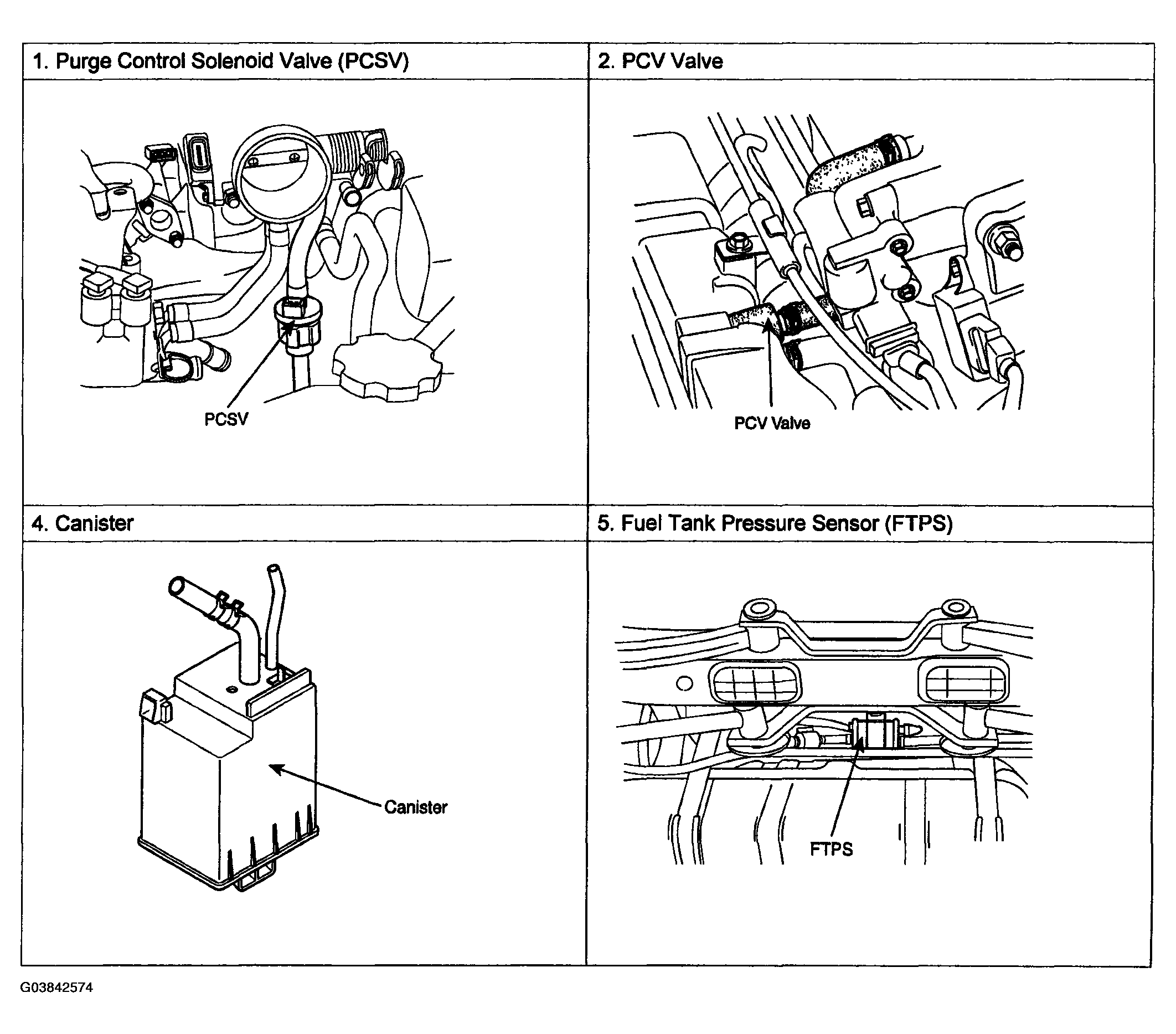

Fig 2: Locating Emission Control System Components (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
