Circuit Diagram
Circuit Diagram

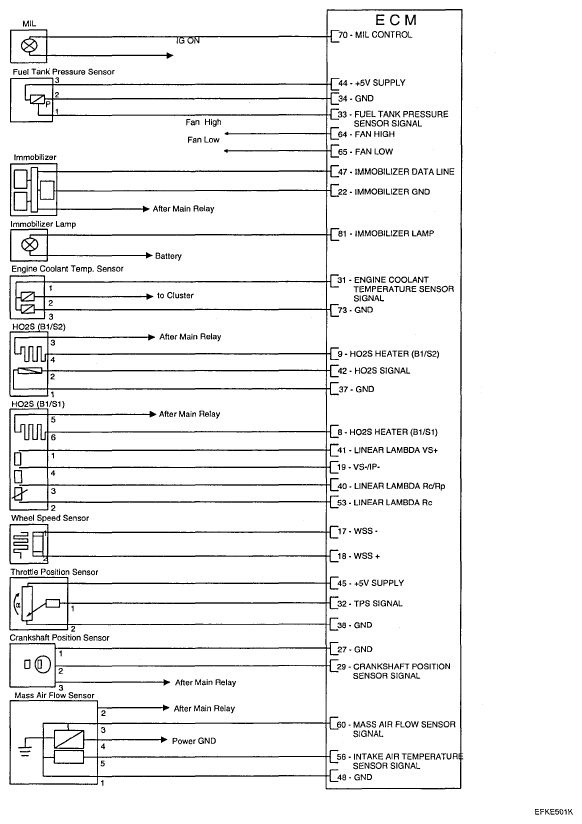

Fig 1: Engine Control System - Circuit Diagram (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

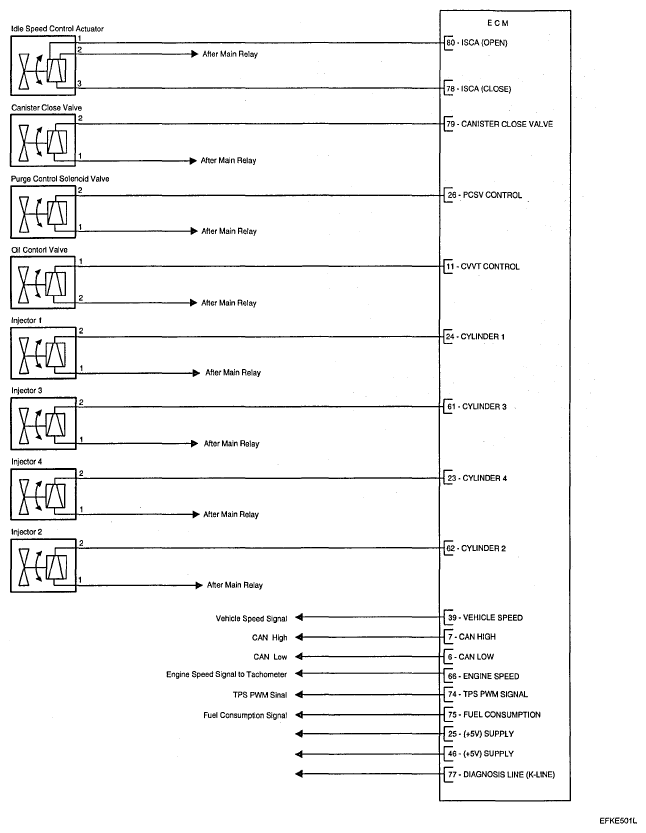

Fig 2: Engine Control System - Circuit Diagram (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

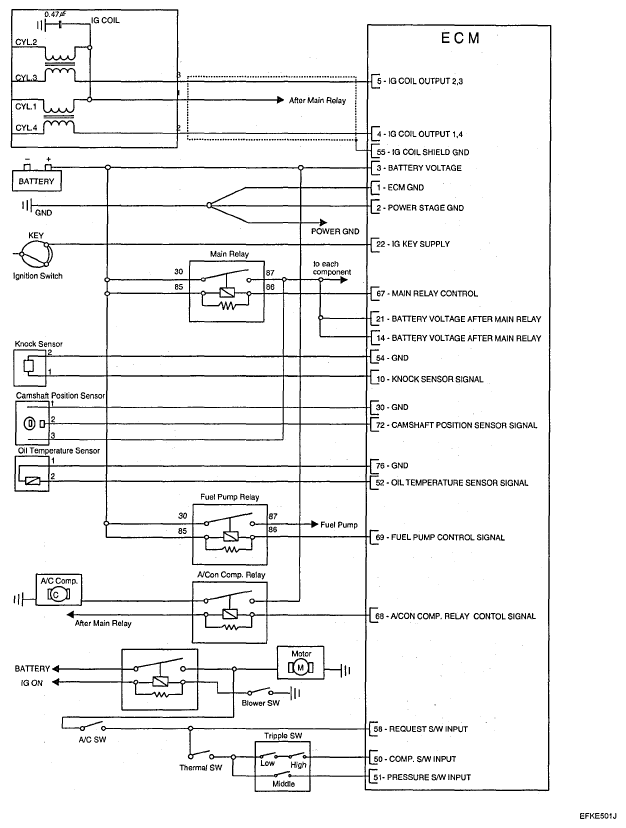

Fig 3: Engine Control System - Circuit Diagram (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
