Automatic Transaxle: Components

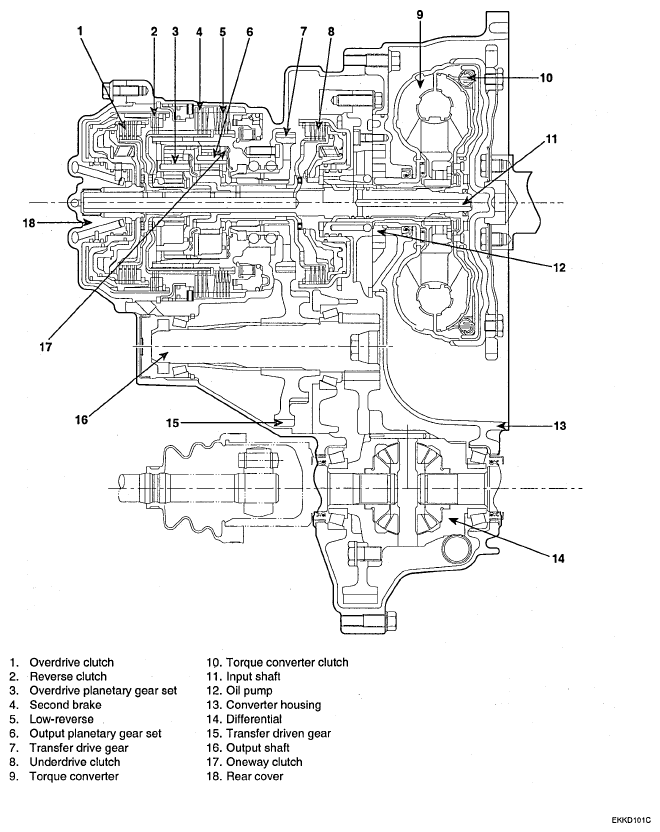

Fig 1: Identifying Automatic Transmission Components
G04924287Courtesy of HYUNDAI MOTOR CO.
