Fuel System (G6BA-GSL 2.7)
›
Gasoline Engine Control System
›
Canister Close Valve
›
Troubleshooting Procedures
Troubleshooting Procedures

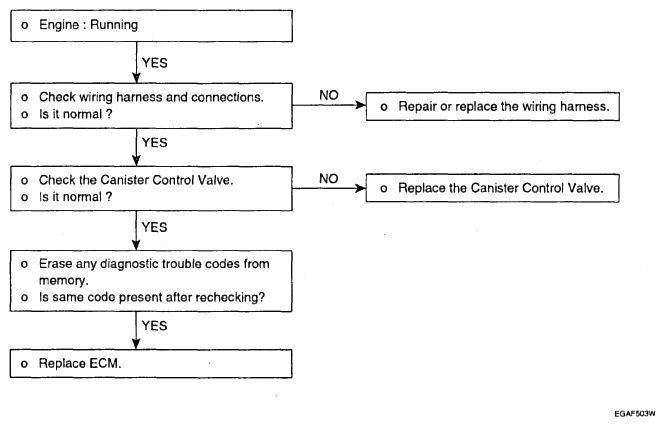

Fig 1: Troubleshooting Procedures Flow Chart
Courtesy of HYUNDAI MOTOR CO.
