Throttle Position Sensor (TPS) : Description

The TPS is a variable resistor type that rotates with the throttle body throttle shaft to sense the throttle valve angle. As the throttle shaft rotates, the output voltage of the TPS changes. The ECM detects the throttle valve opening based on voltage change.

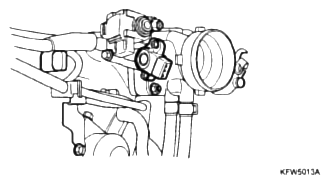

Fig 1: Identifying Throttle Position Sensor

Courtesy of HYUNDAI MOTOR CO.
