Home › Hyundai › 2006 › Santa Fe GLS, 2.7 D, FWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Fuel System (G6BA-GSL 2.7) › Fuel Delivery System › Fuel Line And Vapor Line › Components

Fuel Line And Vapor Line: Components

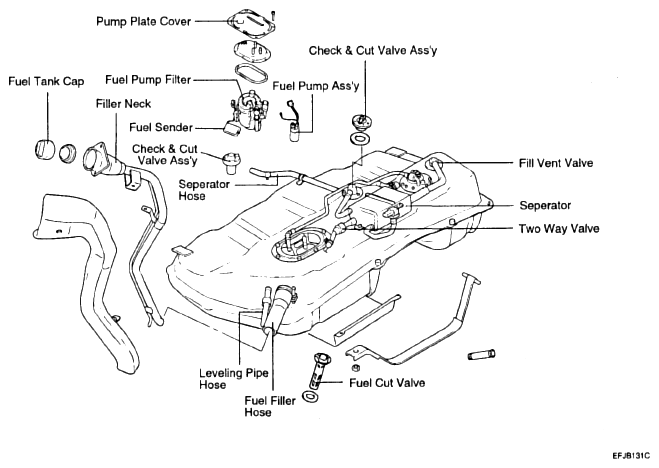

Fig 1: Identifying Fuel Line And Vapor Line Components
G04932454Courtesy of HYUNDAI MOTOR CO.
