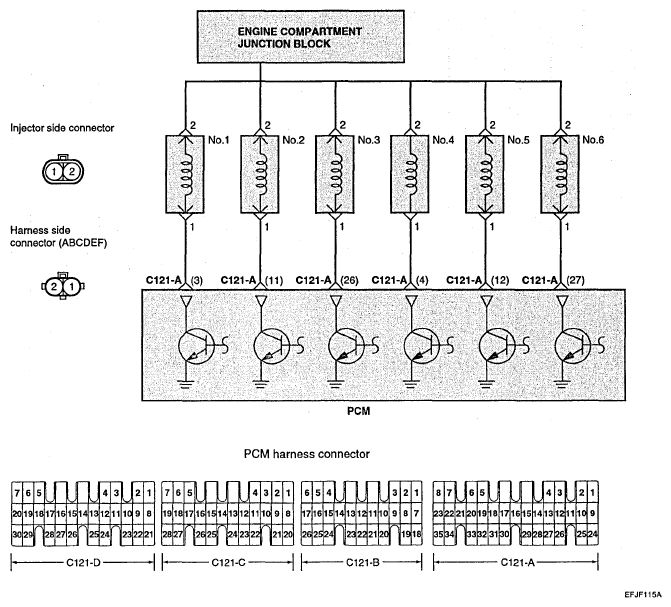

Home › Hyundai › 2006 › Santa Fe GLS, 3.5 E, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Fuel System (G6CU-GSL 3.5) › Gasoline Engine Control System › Injector › Circuit Diagram
