Anti-Lock Braking System Wheel Speed Sensor: Components

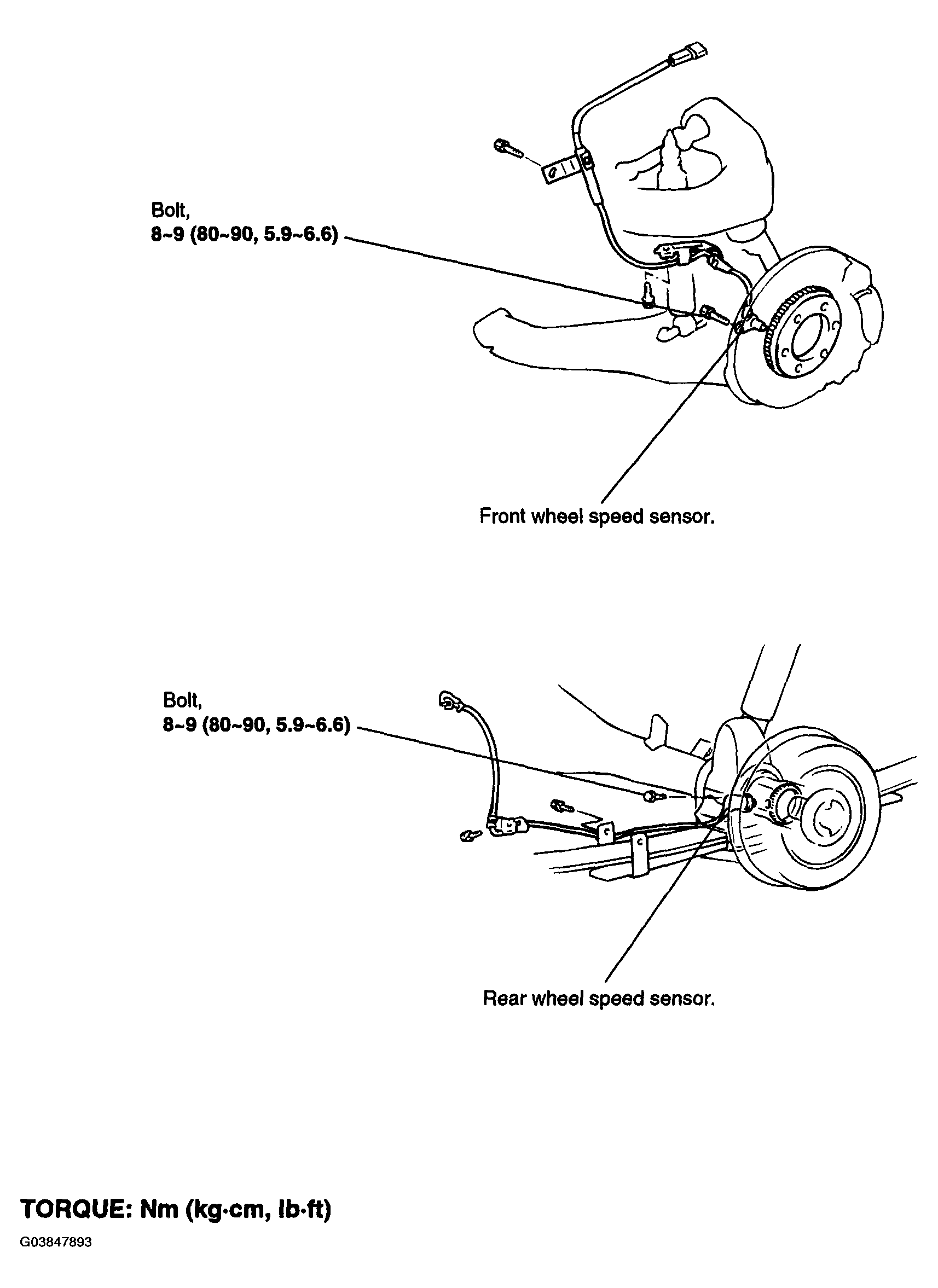

Fig 1: Anti-Lock Braking System Wheel Speed Sensor Replacement Components With Torque Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
