Engine Coolant Temperature Sensor (ECTS)
›
Troubleshooting Procedures
Troubleshooting Procedures

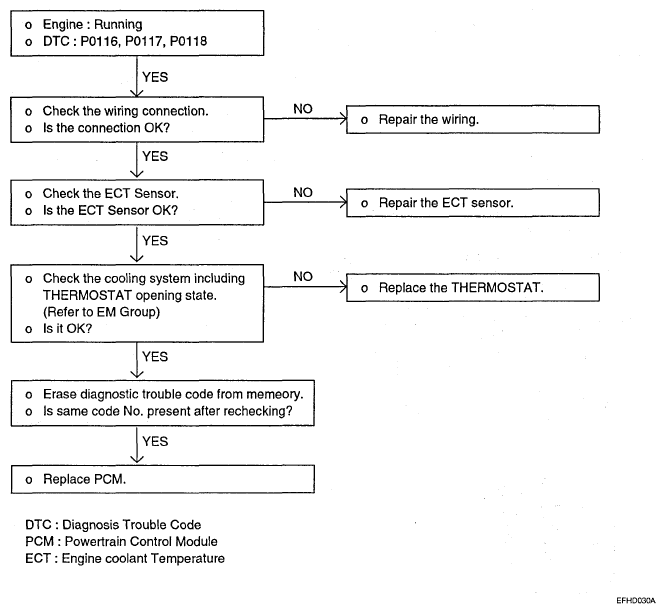

Fig 1: Troubleshooting Flow Chart
Courtesy of HYUNDAI MOTOR CO.
