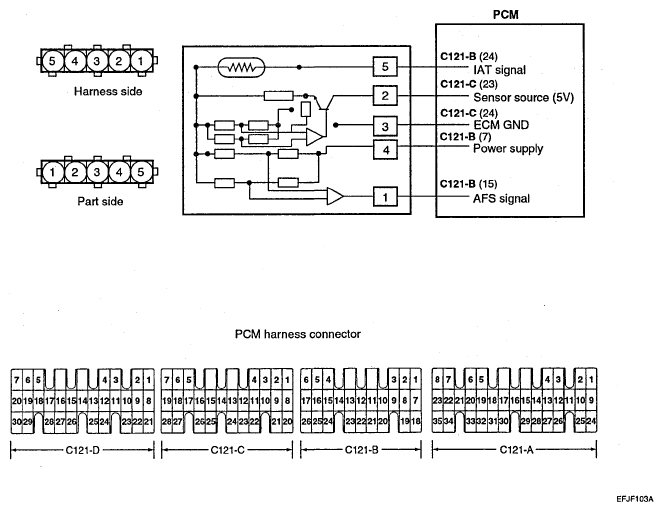

Home › Hyundai › 2006 › Santa Fe Limited, AWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Fuel System (G6CU-GSL 3.5) › Gasoline Engine Control System › Intake Air Temperature (IAT) Sensor › Circuit Diagram
