Automatic Transaxle Hydraulic Circuit: First

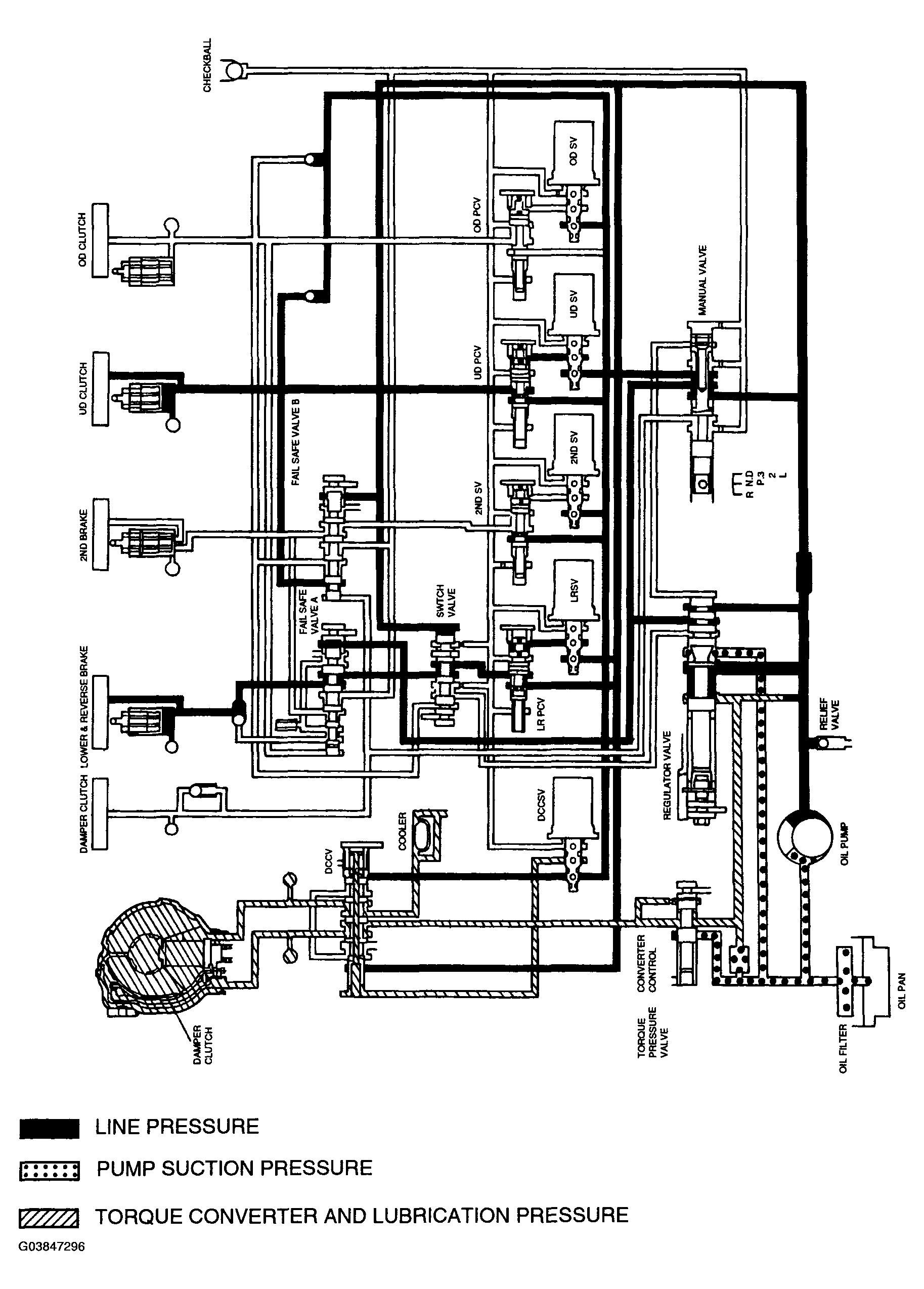

Fig 1: Automatic Transaxle Hydraulic Diagram - First
G03847296Courtesy of HYUNDAI MOTOR CO.
