Crash Pad: Components

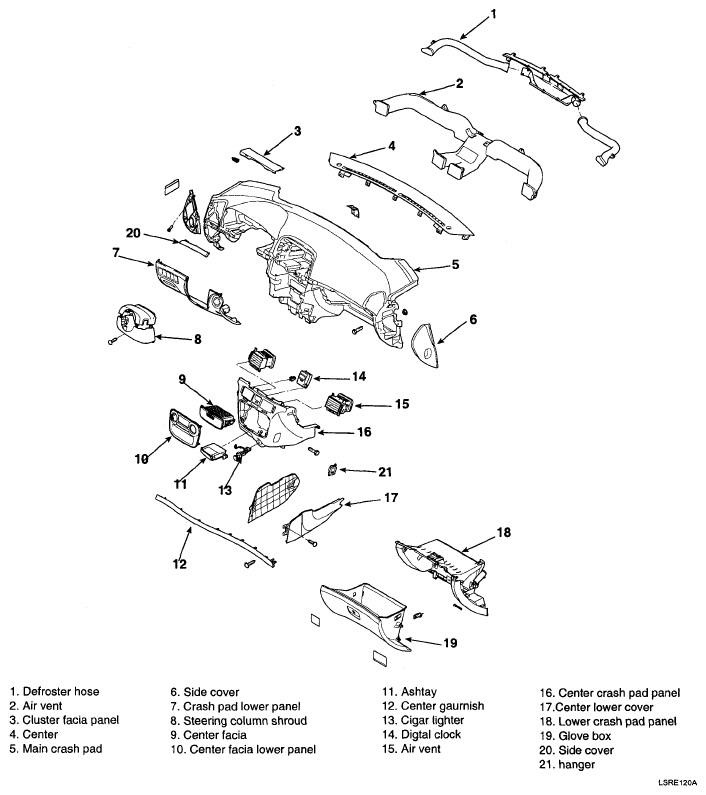

Fig 1: Exploded View Of Crash Pad Components
G04892870Courtesy of HYUNDAI MOTOR CO.
