Audio Assembly Replacement

Remove the center facia panel (See CENTER FACIA PANEL REPLACEMENT ).
Loosen the screws.

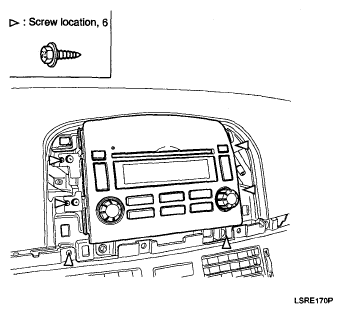

Fig 1: Identifying Center Facia Panel Screw Location
Courtesy of HYUNDAI MOTOR CO.
Disconnect the audio connector (A) and antenna cable (B), then remove the audio assembly (C).

Fig 2: Identifying Audio Connector And Antenna Cable
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
