Monitor SCANTOOL Data

  1. IG "OFF" & connect scantool.
  2. ENG "ON" and warm-up the engine to normal operating temperature.
  3. Monitor "IATS" item on the service data.

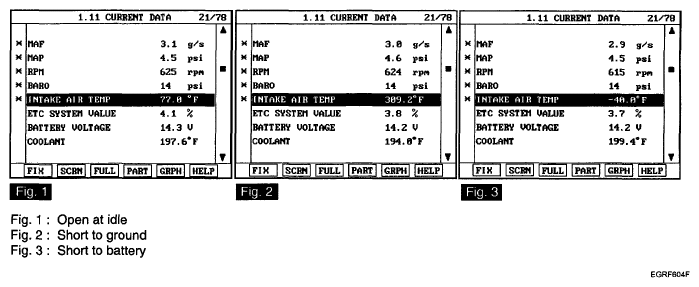

    Fig 1: Diagnosis Function Screen Display - IATS
    G04891321
  4. Is the "IATS" data displayed correctly ?

    YES

    • Fault is intermittent caused by poor contact in the sensor' s and/or PCM' s connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure

    NO
