Starting System: Starter: Replacement

  1. Disconnect the battery negative cable.
  2. Disconnect the starter cable (A) from the B terminal (B) on the solenoid (C), then disconnect the connector (D) from the S terminal (E).

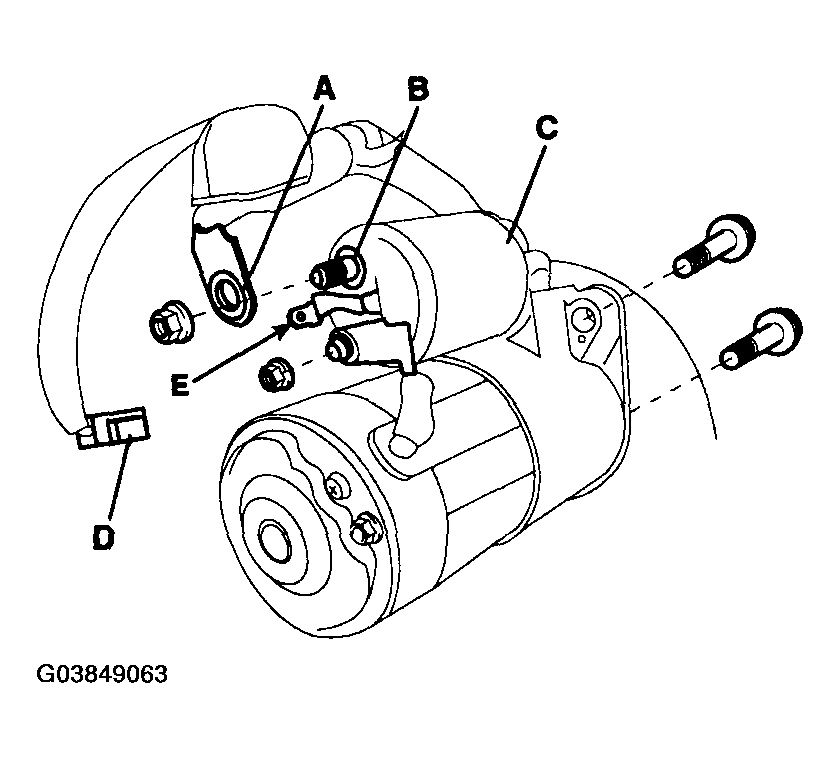

    Fig 1: Disconnecting Starter Cable From B Terminal On Solenoid And Connector From S Terminal
    G03849063Courtesy of HYUNDAI MOTOR CO.
  3. Remove the 2 bolts holding the starter, then remove the starter.
  4. Installation is the reverse of removal.
  5. Connect the battery negative cable to the battery.
