3. ECM Terminal Input/Output Signal

CONNECTOR [C133-1]

Fig 1: ECM Terminal Input/Output Signal Description Chart Connector [C133-1] (Pin No. 1-9)

Courtesy of HYUNDAI MOTOR CO.

CONNECTOR [C133-2]

Fig 2: ECM Terminal Input/Output Signal Description Chart Connector [C133-2] (Pin No. 1-24)

Courtesy of HYUNDAI MOTOR CO.

CONNECTOR [C133-3]

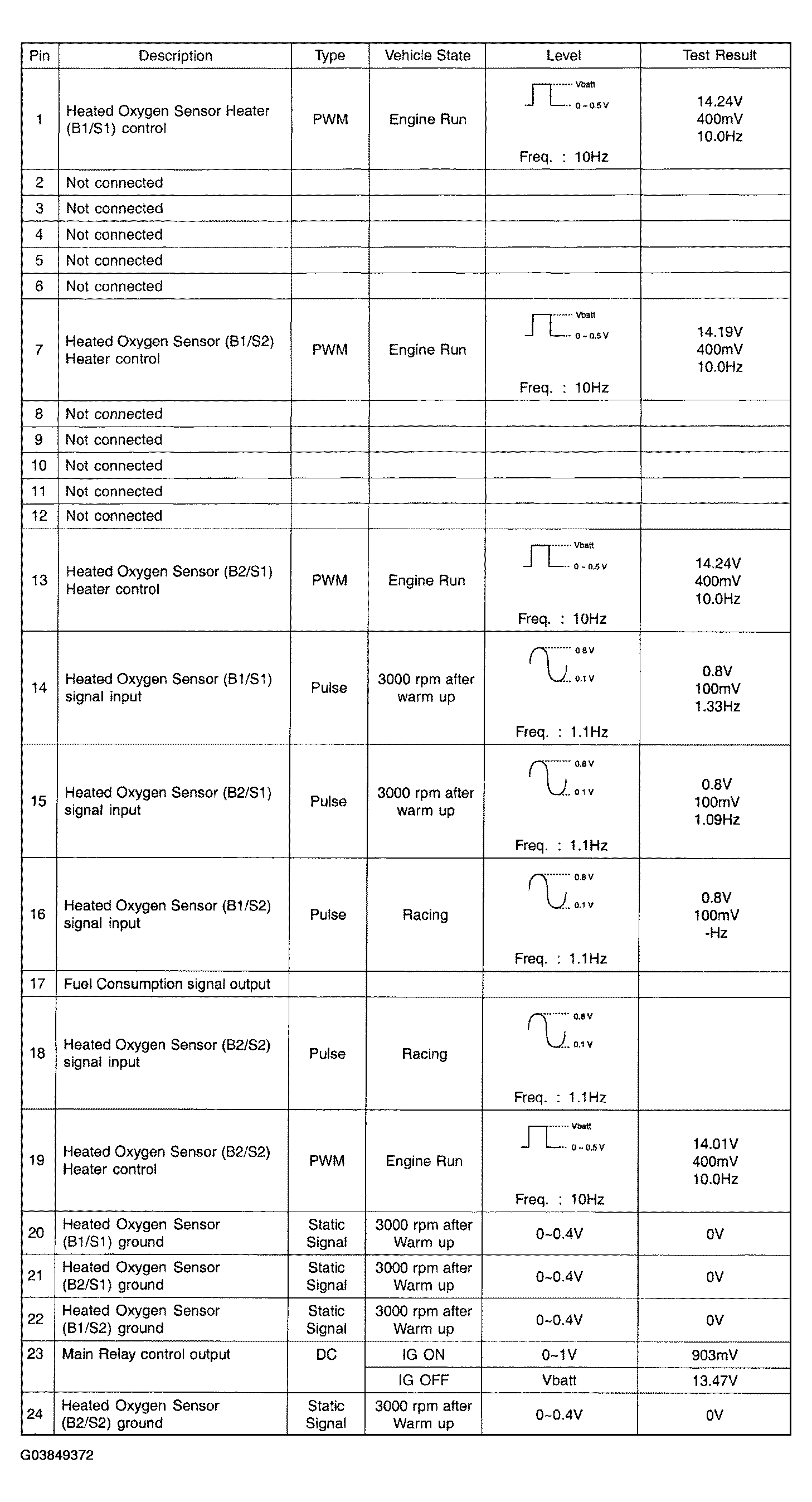

Fig 3: ECM Terminal Input/Output Signal Description Chart Connector [C133-3] (Pin No. 1-23)

Courtesy of HYUNDAI MOTOR CO.

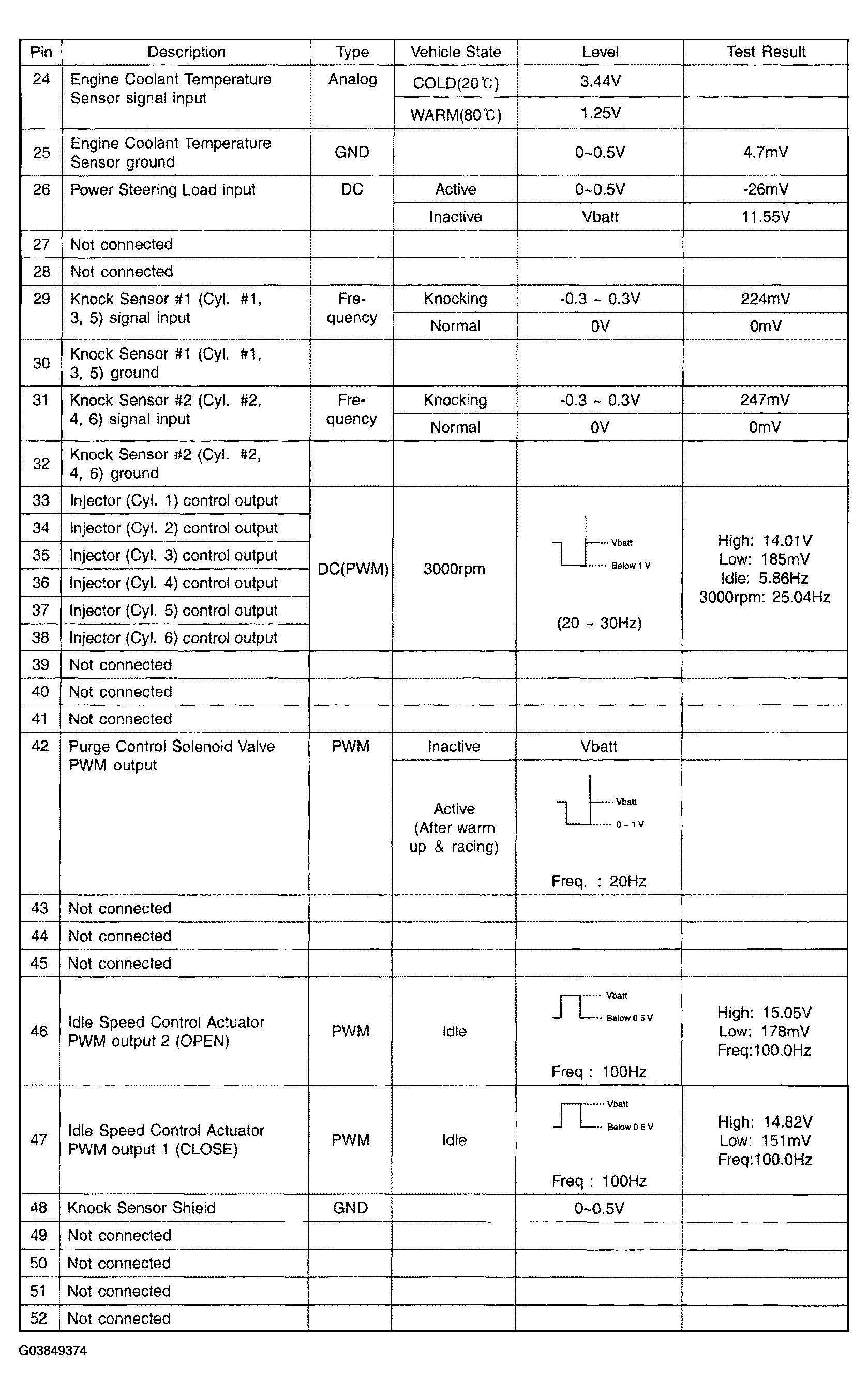

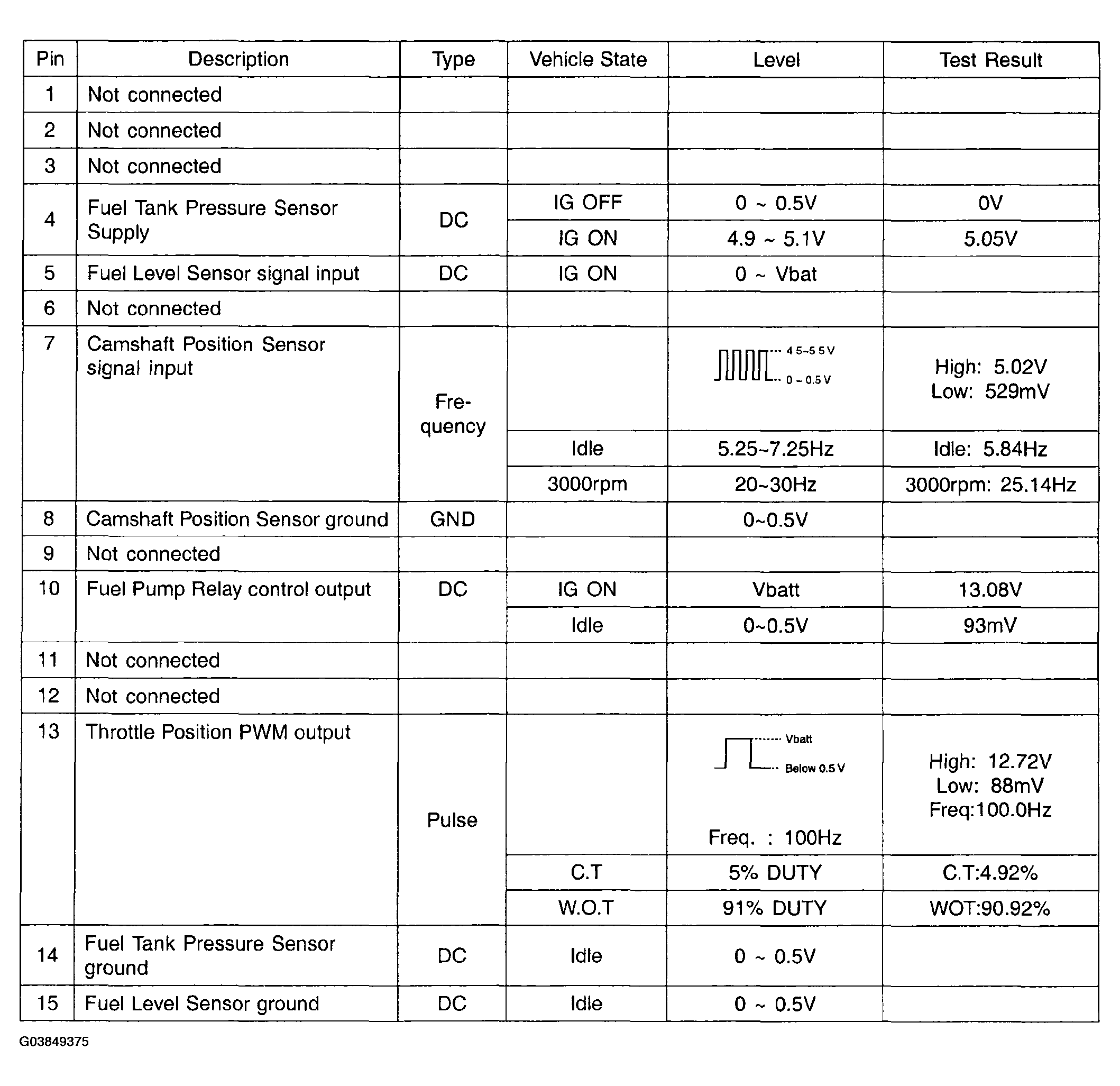

Fig 4: ECM Terminal Input/Output Signal Description Chart Connector [C133-3] (Pin No. 24-52)

Courtesy of HYUNDAI MOTOR CO.

CONNECTOR [C133-4]

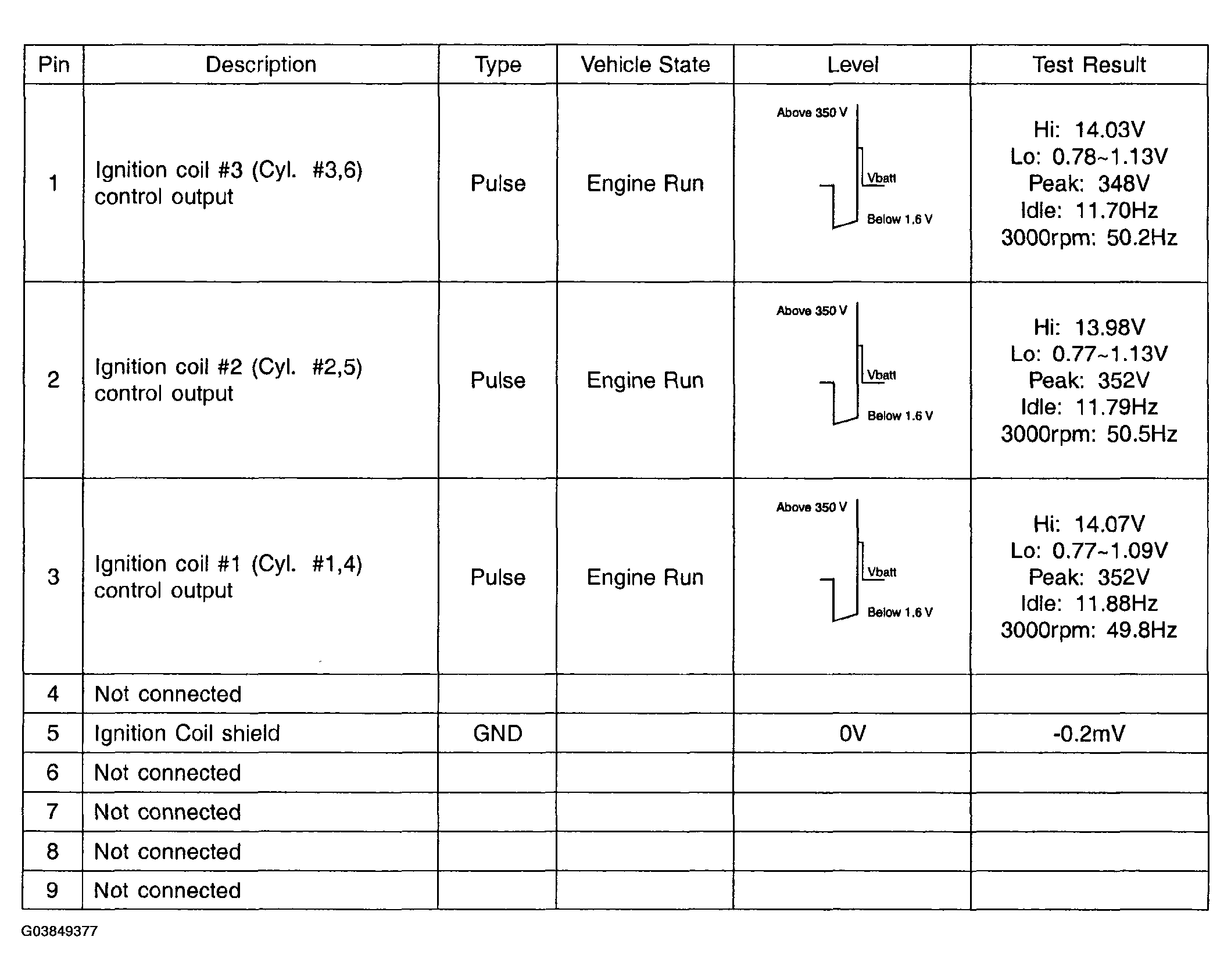

Fig 5: ECM Terminal Input/Output Signal Description Chart Connector [C133-4] (Pin No. 1-15)

Courtesy of HYUNDAI MOTOR CO.

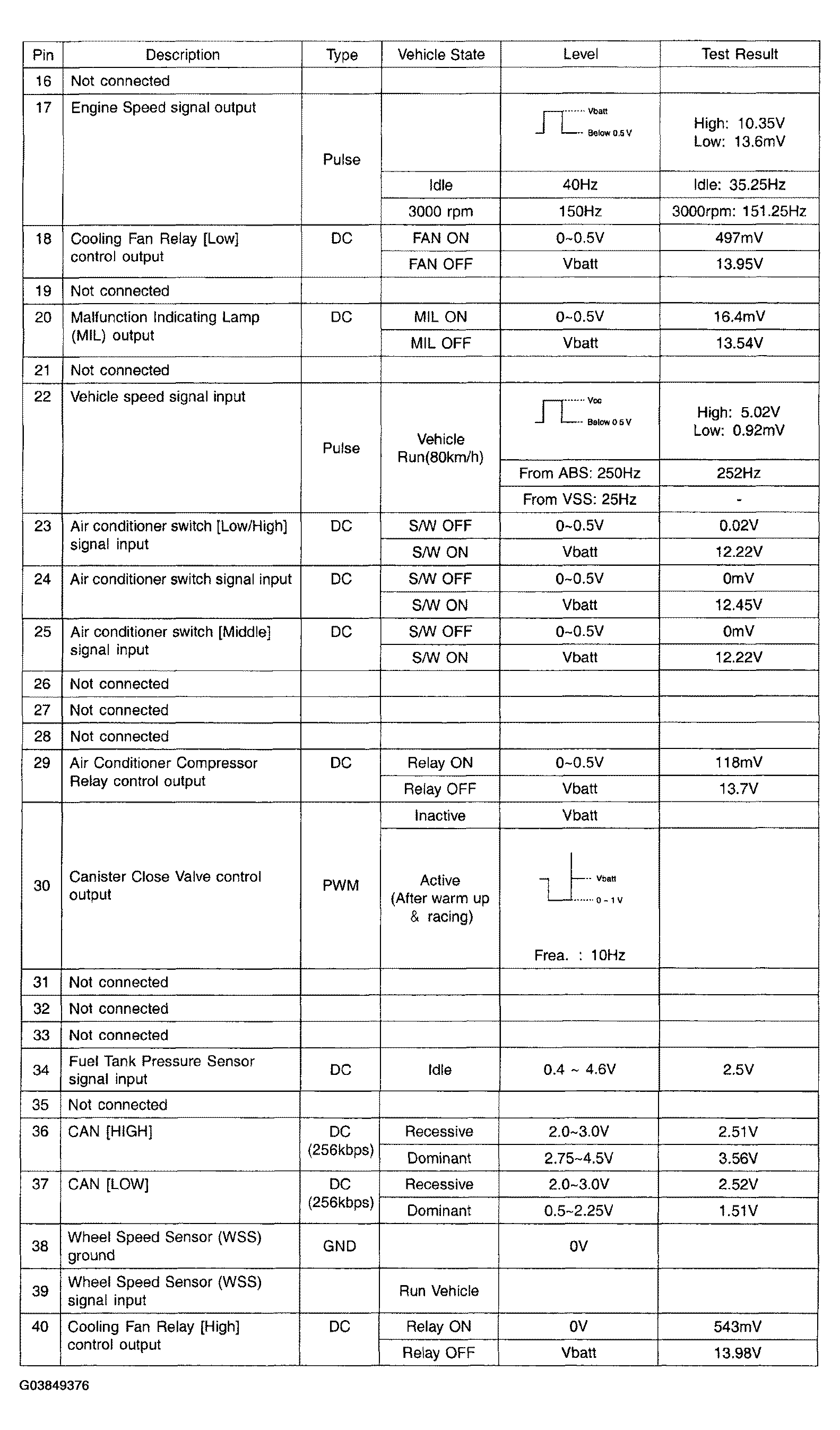

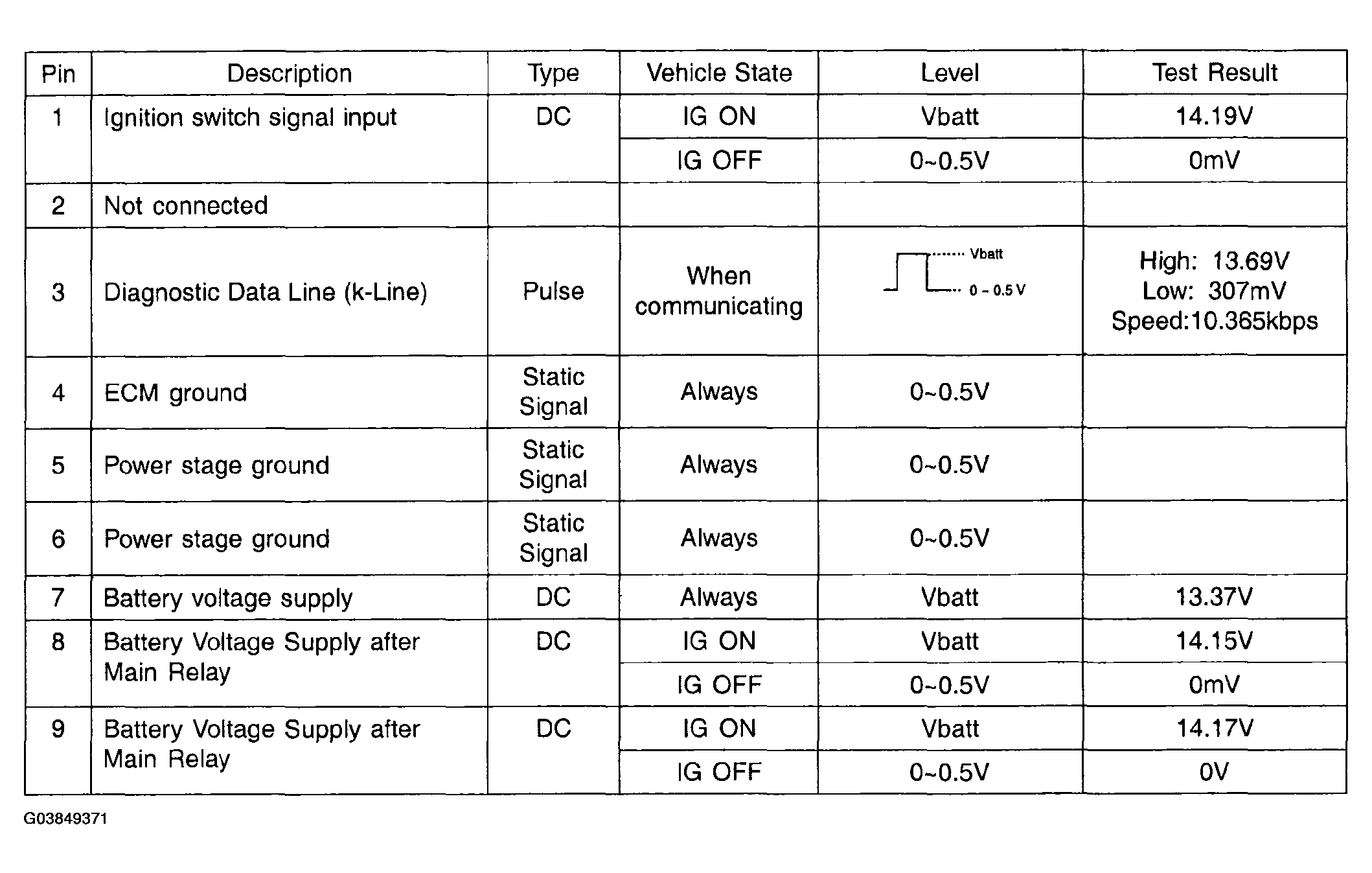

Fig 6: ECM Terminal Input/Output Signal Description Chart Connector [C133-4] (Pin No. 16-40)

Courtesy of HYUNDAI MOTOR CO.

CONNECTOR [C133-5]

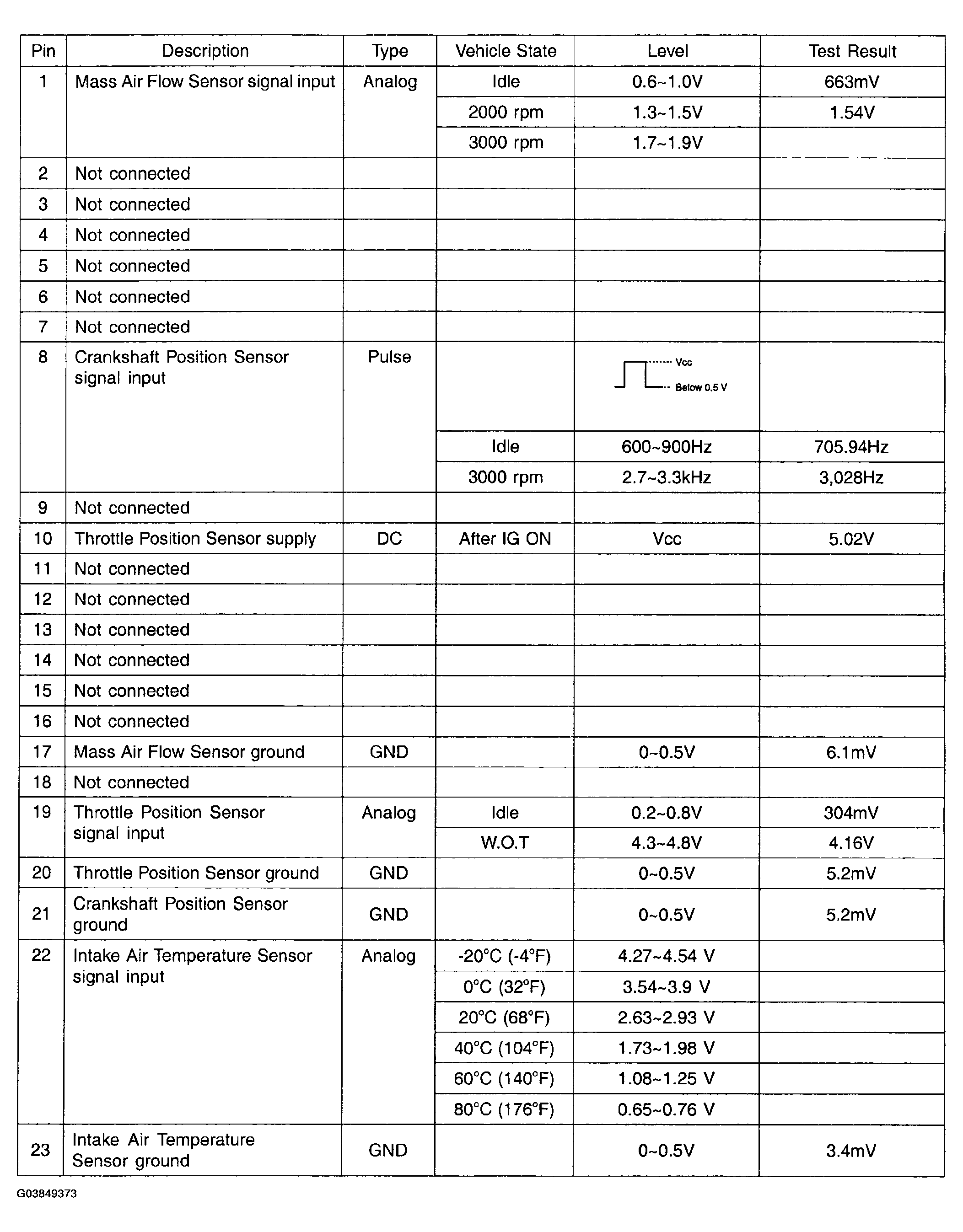

Fig 7: ECM Terminal Input/Output Signal Description Chart Connector [C133-5] (Pin No. 1-9)

Courtesy of HYUNDAI MOTOR CO.
