Components Location
Components Location

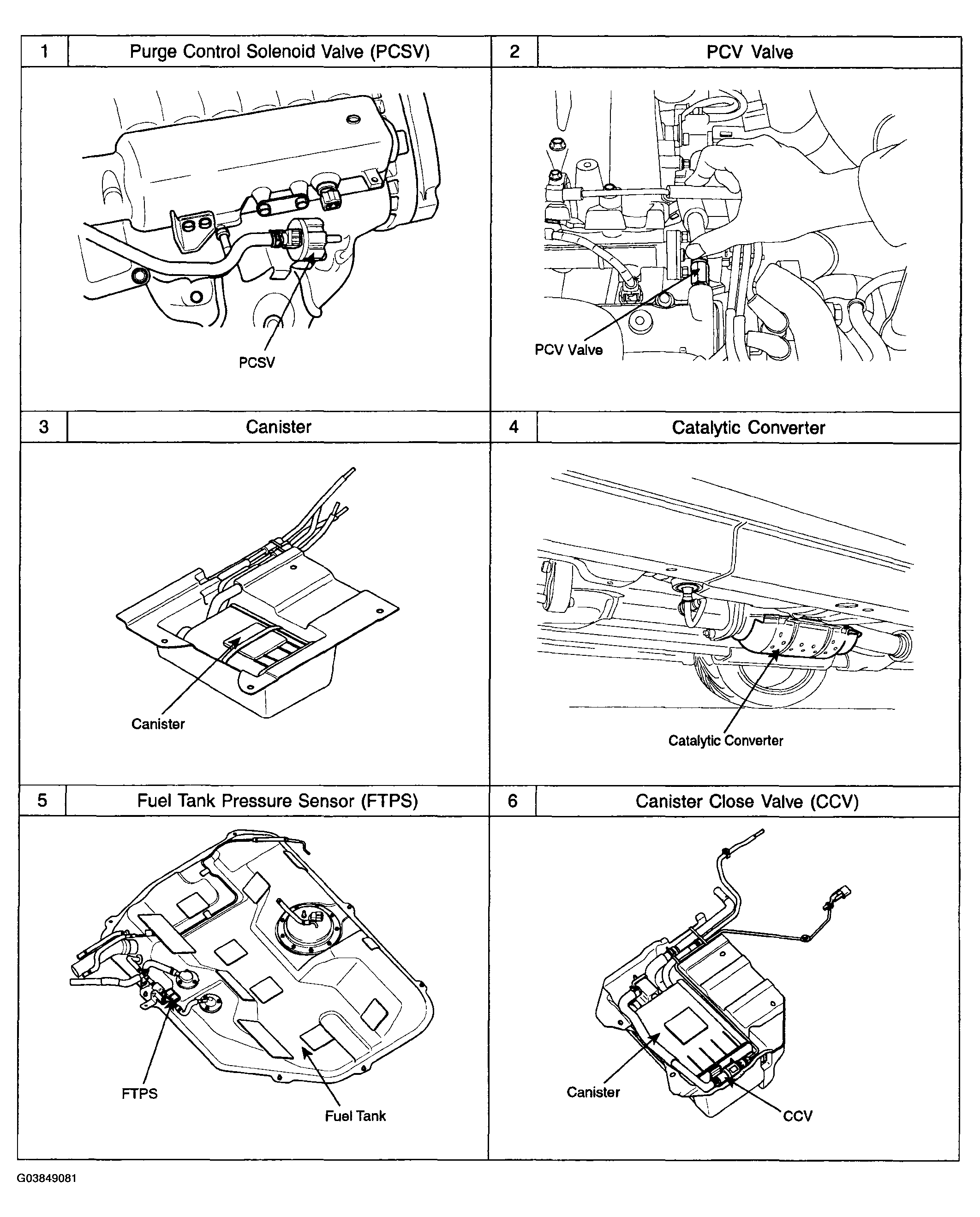

Fig 1: Identifying Components Location Emissions Control System (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

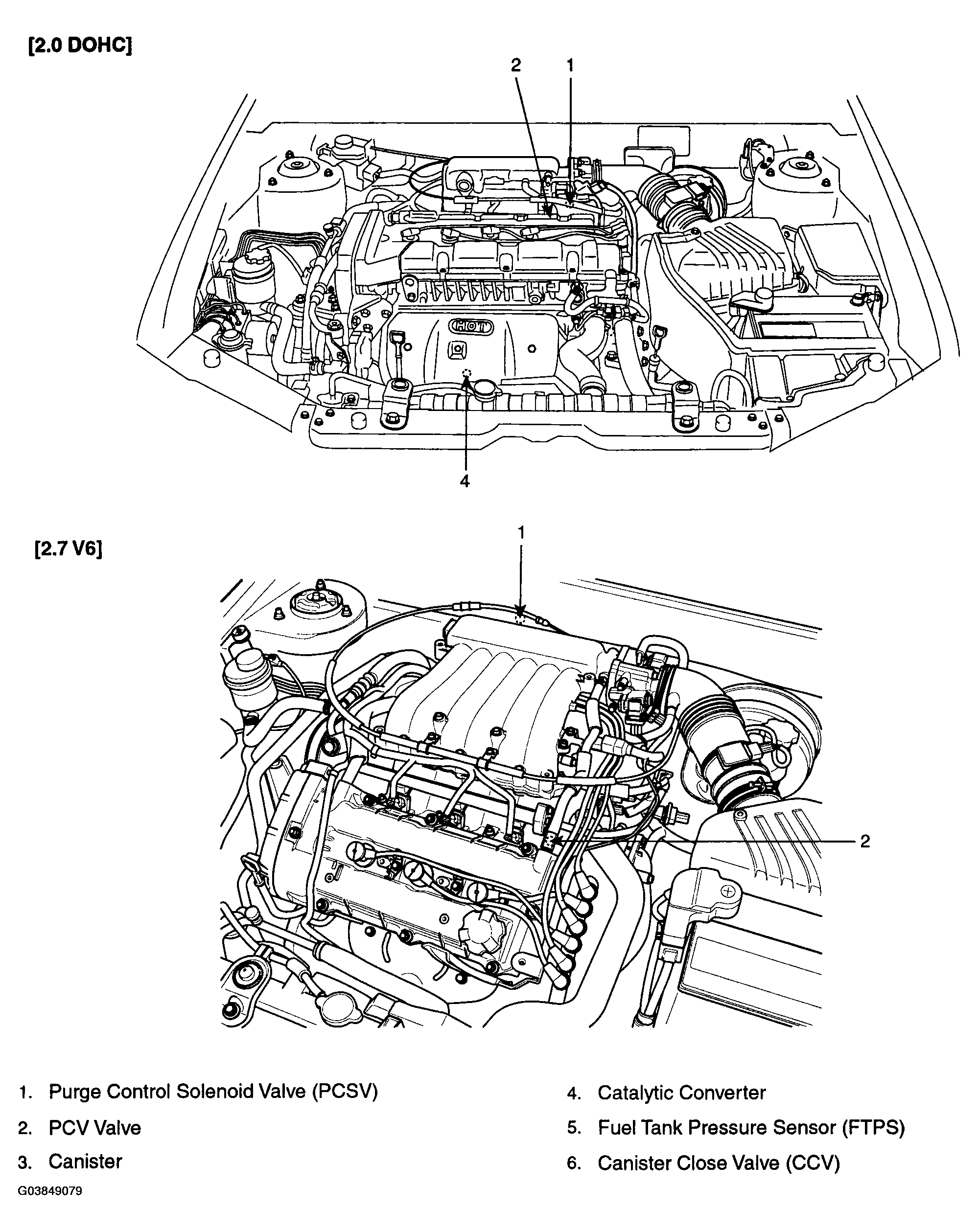

Fig 2: Identifying Components Location Emissions Control System (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

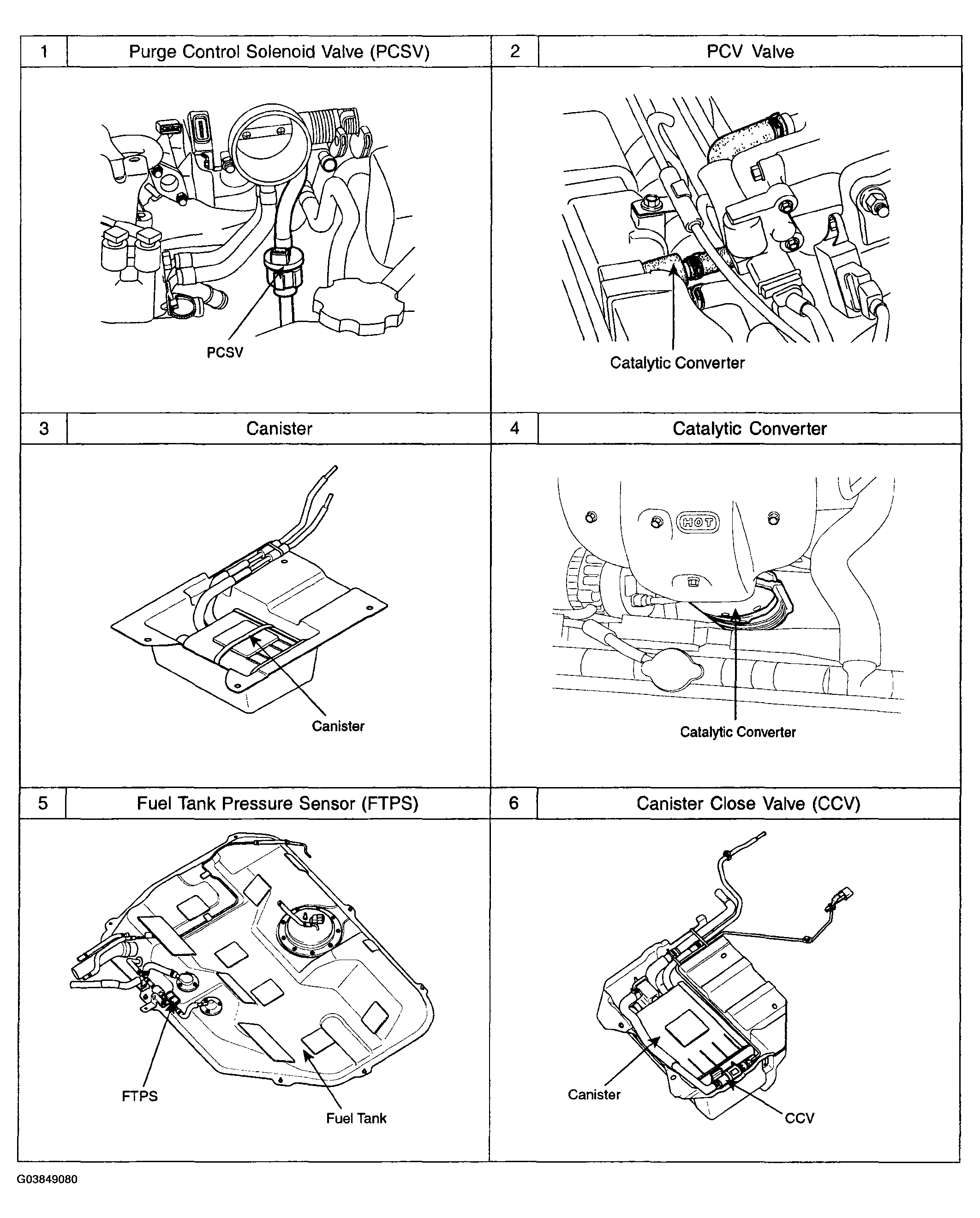

Fig 3: Identifying Components Location Emissions Control System (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
