Evaporative And ORVR Emission Control System: Components

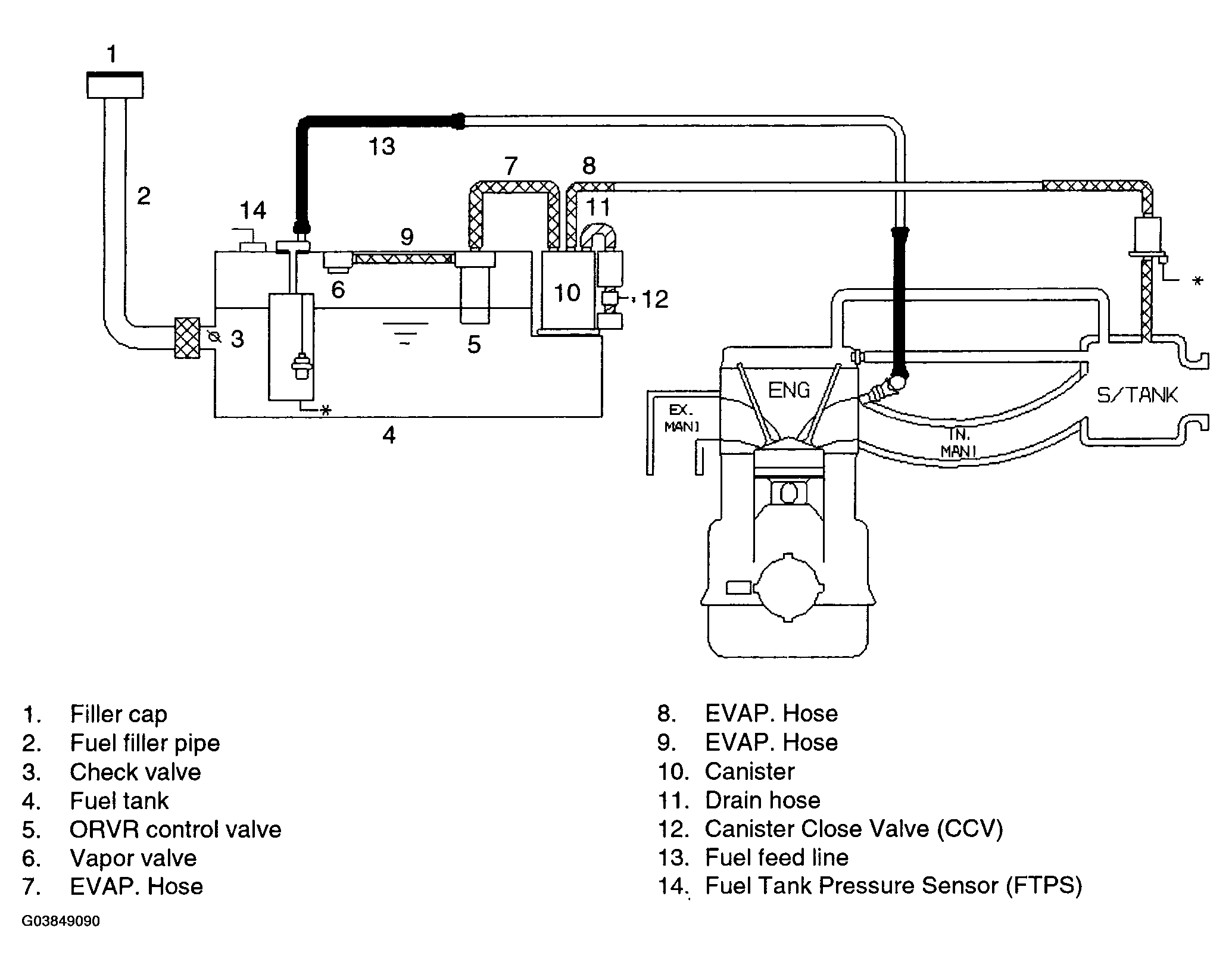

Fig 1: Components Description Evaporative And ORVR Emission Control System
G03849090Courtesy of HYUNDAI MOTOR CO.
