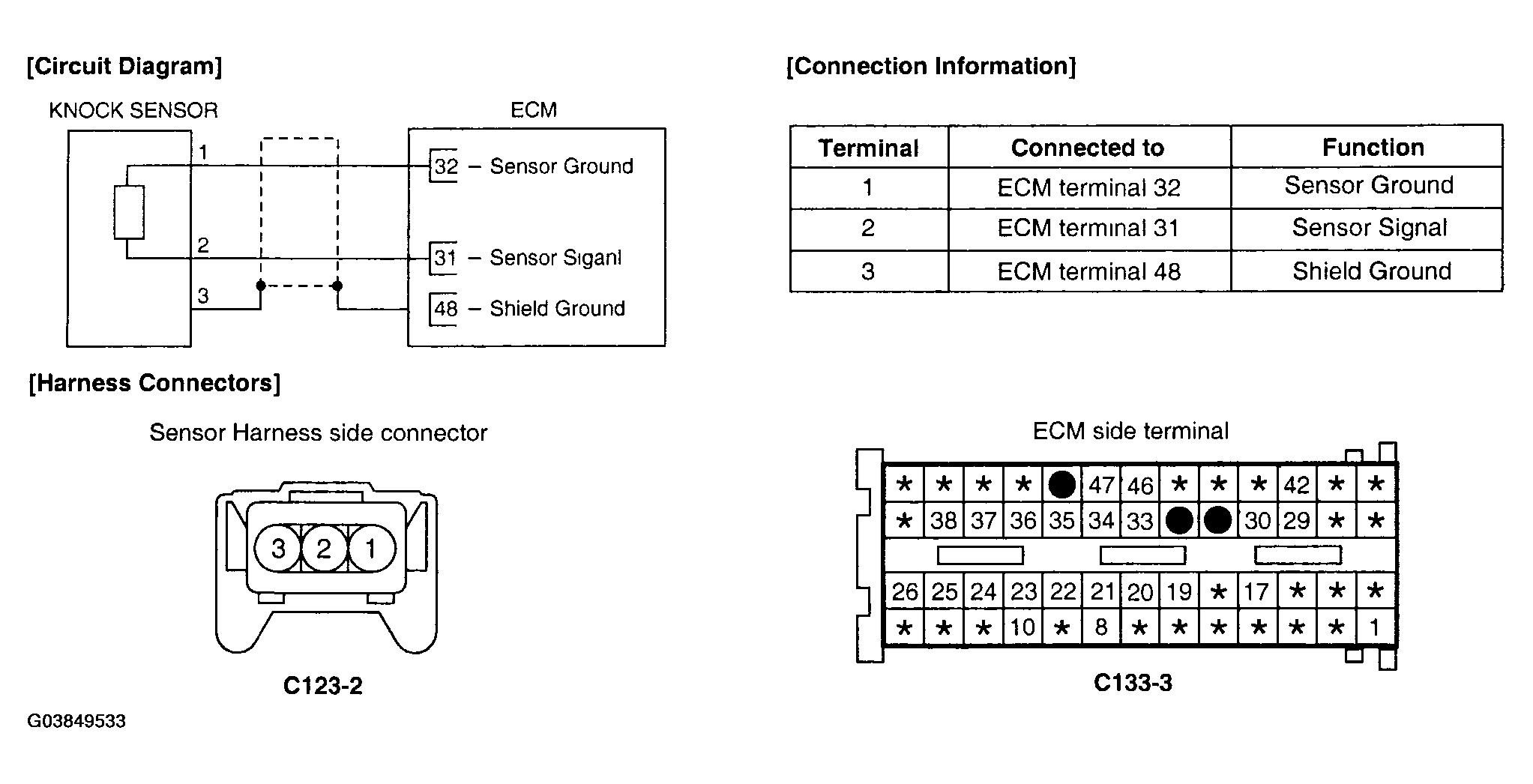

Home › Hyundai › 2006 › Tiburon SE › Repair and Diagnosis › Engine Performance › Engine Control Systems › Fuel System (G6BA-GSL 2.7L) › DTC Troubleshooting Procedures › DTC P0330 Knock Sensor 2 Circuit › Schematic Diagram
