Components
›
5-Speed M/T
5-Speed M/T

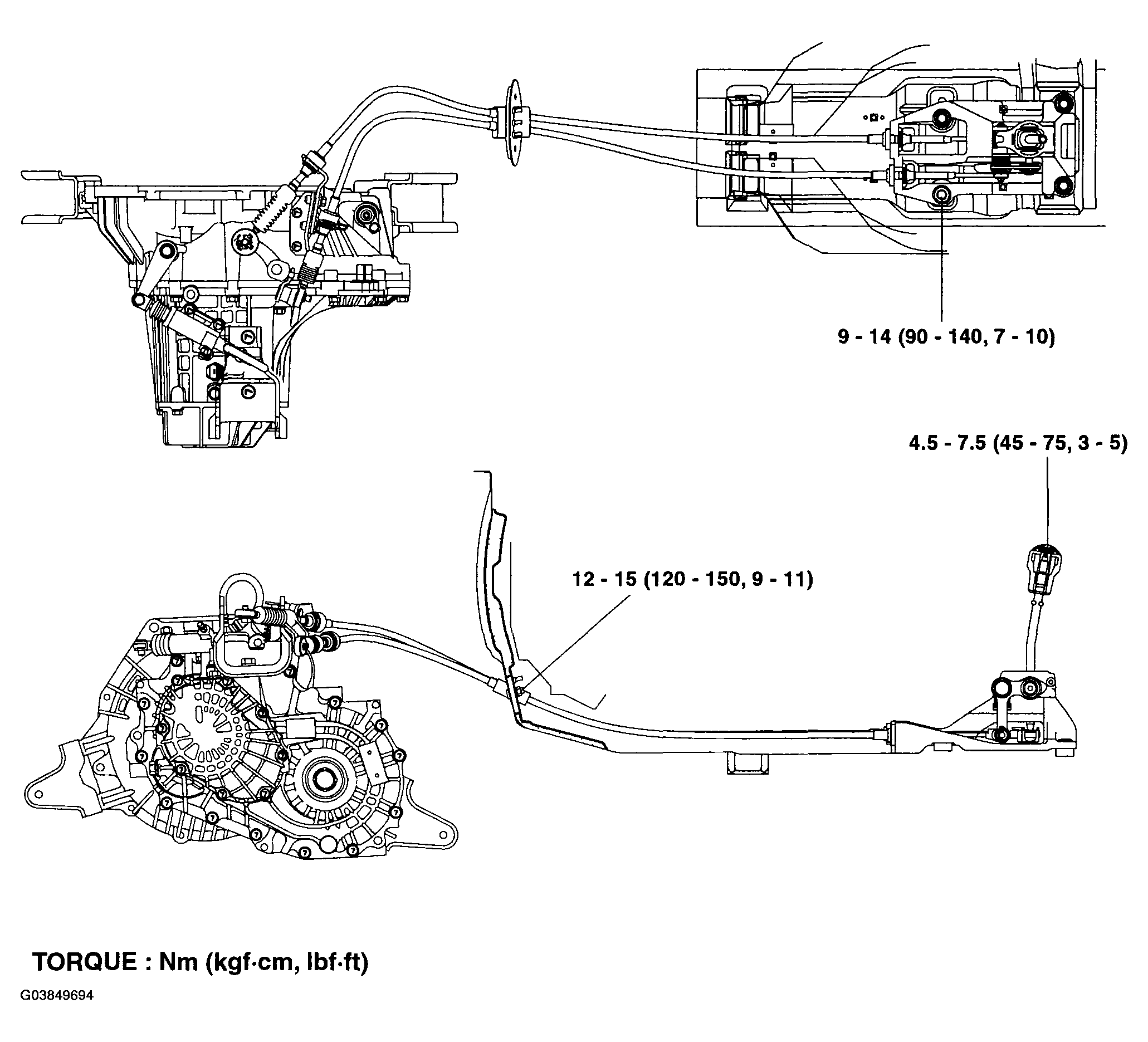

Fig 1: Manual Transaxle Shift Control Replacement Components With Torque Specifications (5-Speed M/T)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
