Hyundai
›
2006
›
Tiburon SE
›
Repair and Diagnosis
›
Transmission
›
Manual Transmission System
›
Manual Transaxle System
›
Manual Transaxle Shift Control
›
Components
›
6-Speed M/T
6-Speed M/T

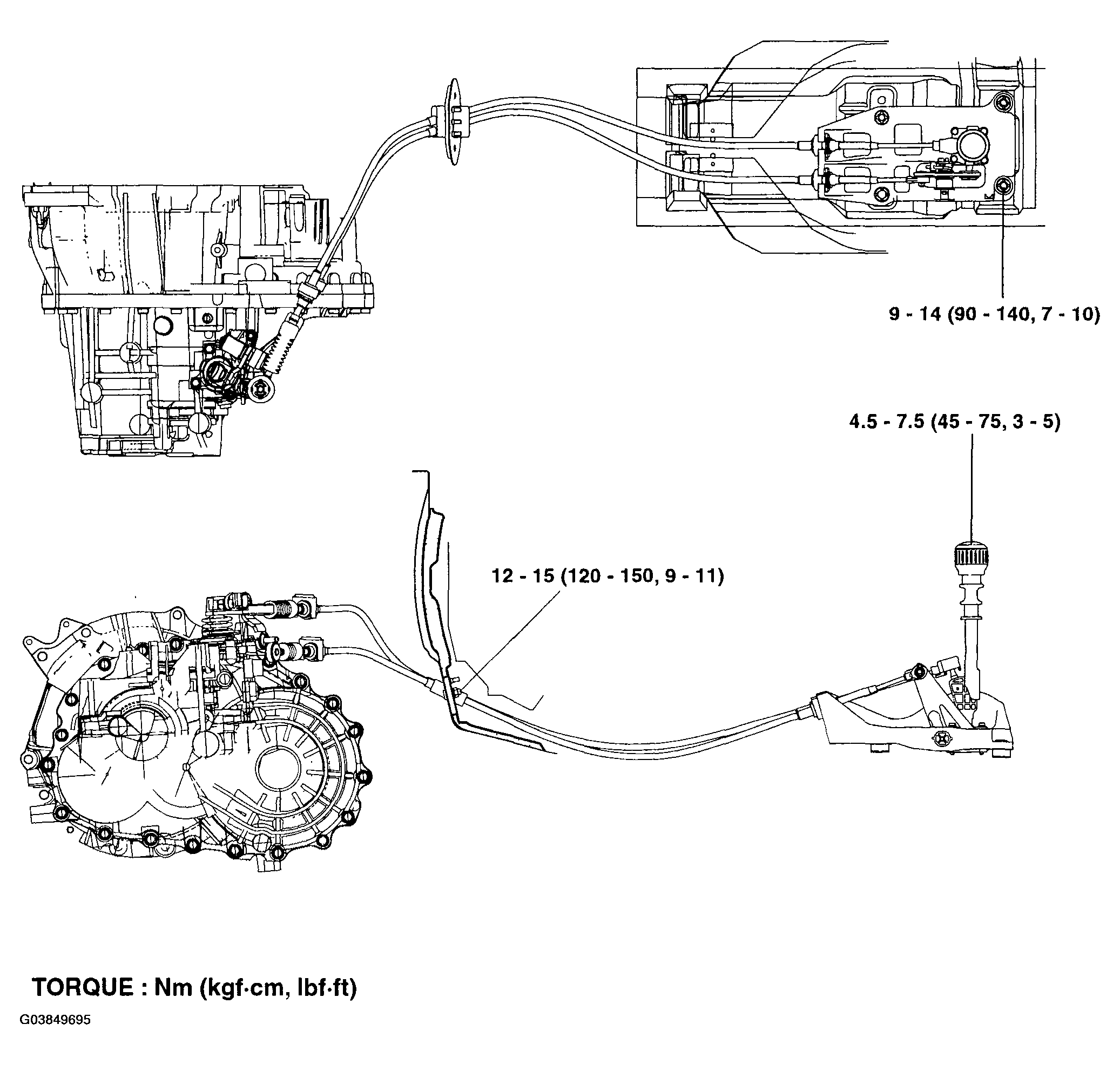

Fig 1: Manual Transaxle Shift Control Replacement Components With Torque Specifications (6-Speed M/T)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
