Hyundai
›
2006
›
Tucson GL, FWD, Standard
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Fuel System (G4GC - GSL 2.0)
›
Gasoline Engine Control System
›
Components Location
Components Location

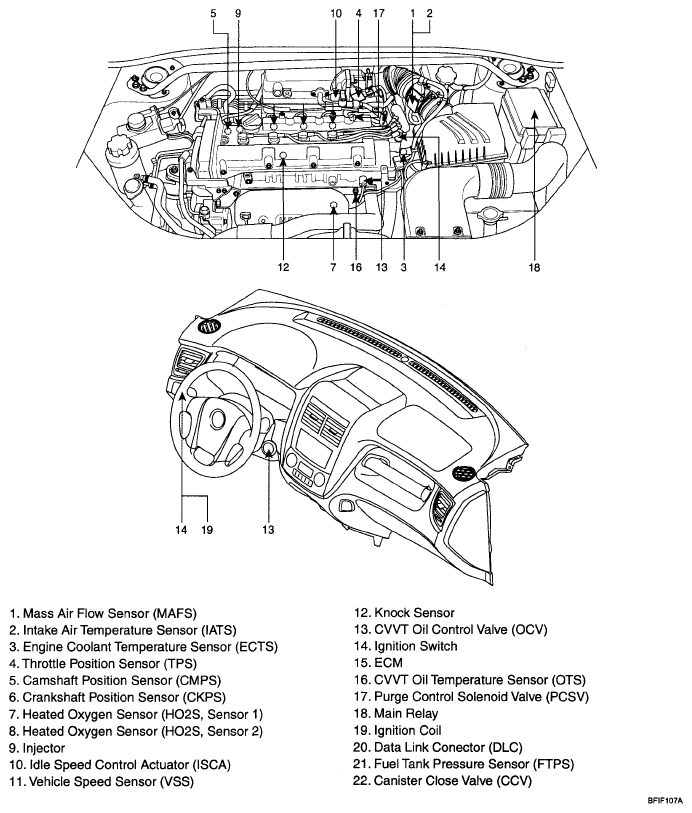

Fig 1: Identifying Fuel System Components Locations (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

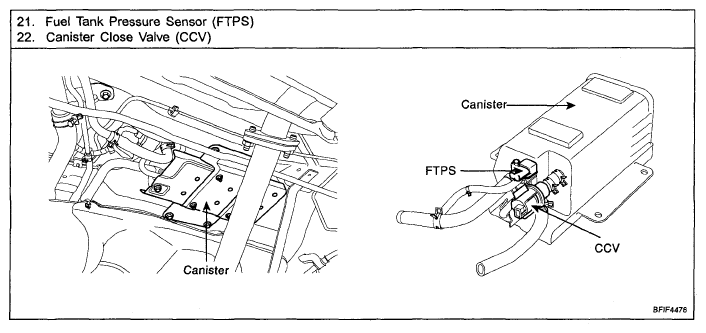

Fig 2: Identifying Fuel System Components Locations (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

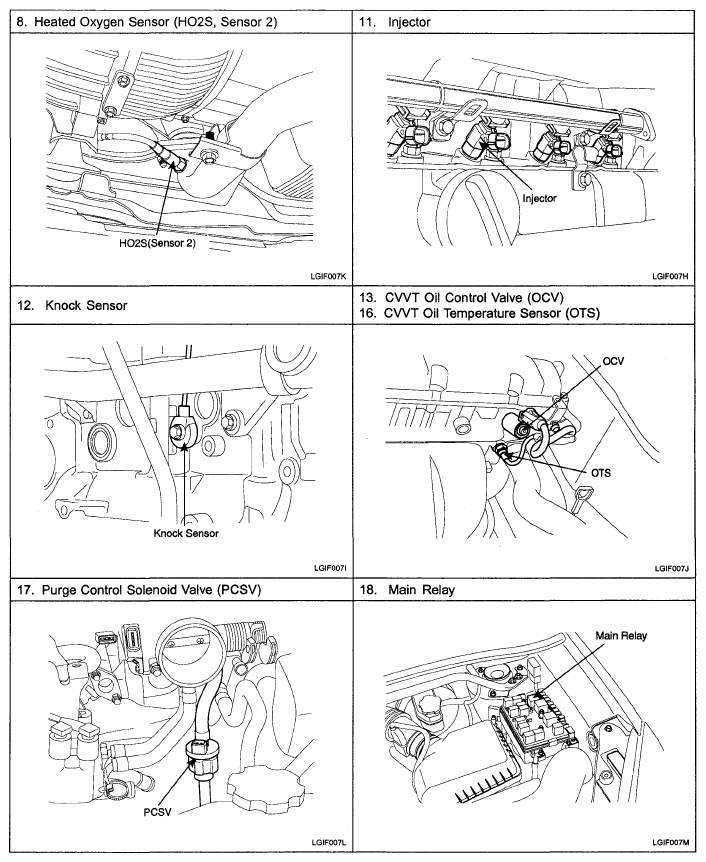

Fig 3: Identifying Fuel System Components Locations (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

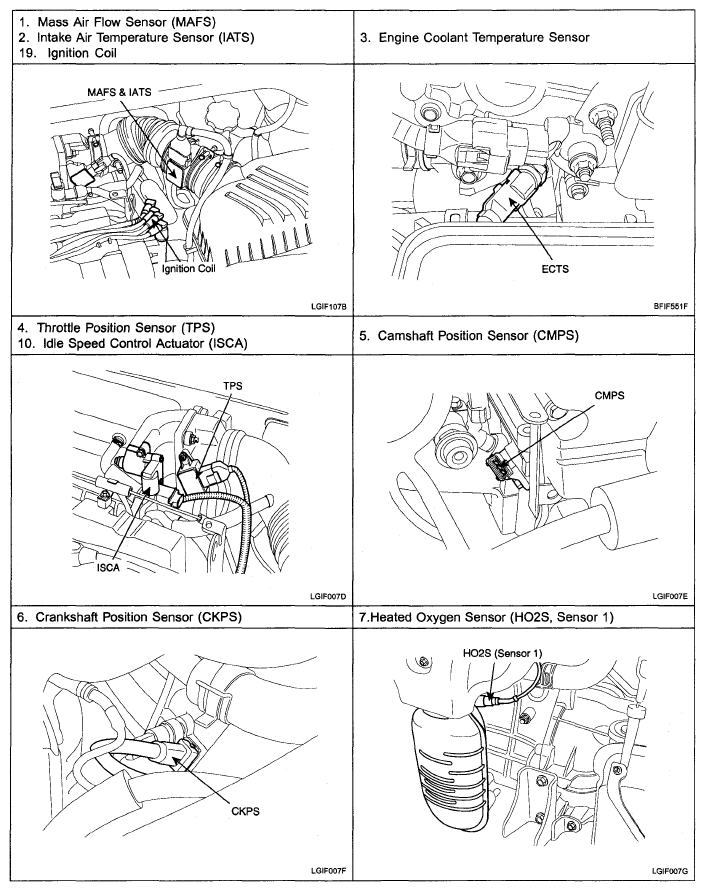

Fig 4: Identifying Fuel System Components Locations (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
